Part Number: ELM406A3-G

Description

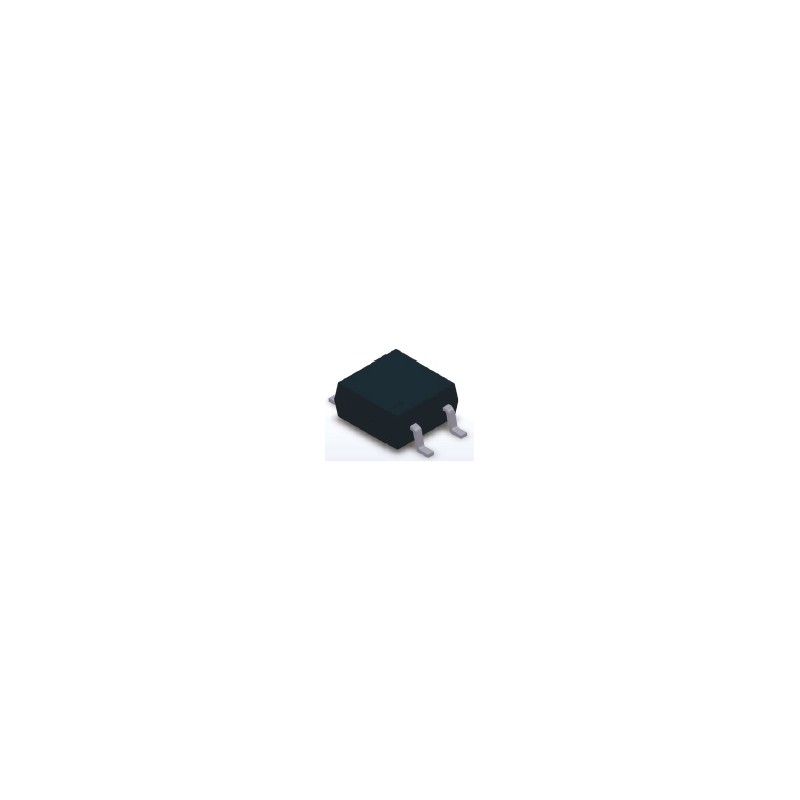

The ELM406A3-G is a solid state relay containing Al GaAs infrared LEDs on the light emitting side (input side)
optically coupled to a high voltage output detector circuit. The detector consists of a photovoltaic diode array and
MOS FETs on the output side. The single channel configuration is equivalent to 1 form A . The devices are in a 4 pin small
outline SMD package.

Features
Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm).
Normally open signal pole signal throw relay.
Small 4pin SOP package in the 400V & 600V load voltage series.
Lower operation current.
Low-level off state leakage current.
Low on resistance.
Compliance with EU REACH.
Pb free and RoHS compliant.
UL and cUL (approved)
VDE (approved)
SEMKO (approved)
NEMKO (approved)
FIMKO (approved)
CQC (approved)

Applications
Exchange equipment.
Measurement and testing equipment.
FA/OA equipment.
Industrial controls.
Security.
