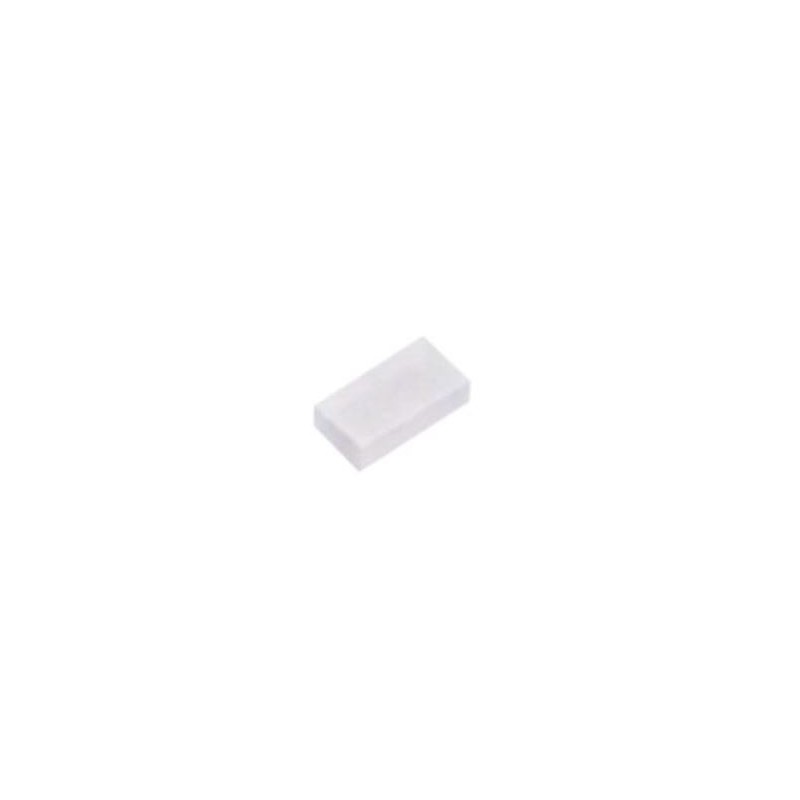

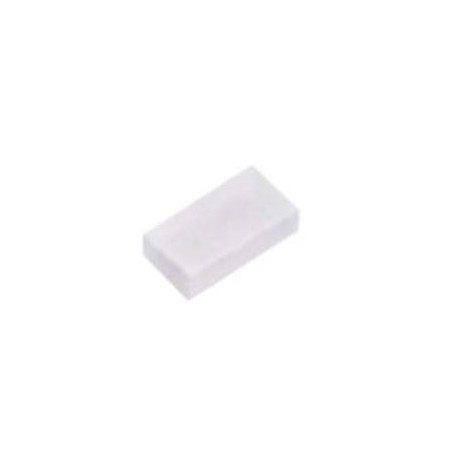

Part Number: CSP0603AN101-BP44460283005-3T

Description
The 0603 CSP LED is much smaller than general components, thus enabling smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Features

• Dimension: 0.6*0.3*0.15 mm LED
• Direct attach-Flip Chip typeWide viewing angle.
• Suitable for vapor-phase reflow, Infrared reflow and wave solder processes
• Computable with automatic placement equipment.
• Available on tape and reel (8mm Tape).
• Pb-free.
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free .(Br<900ppm,CI<900ppm,Br+CI<1500ppm)
• Precondition: Bases on JEDEC J-STD 020D Level 3

Applications
Status indicator, keypad, keyboard, and industrial equipment.
Light pipe application.
General use
