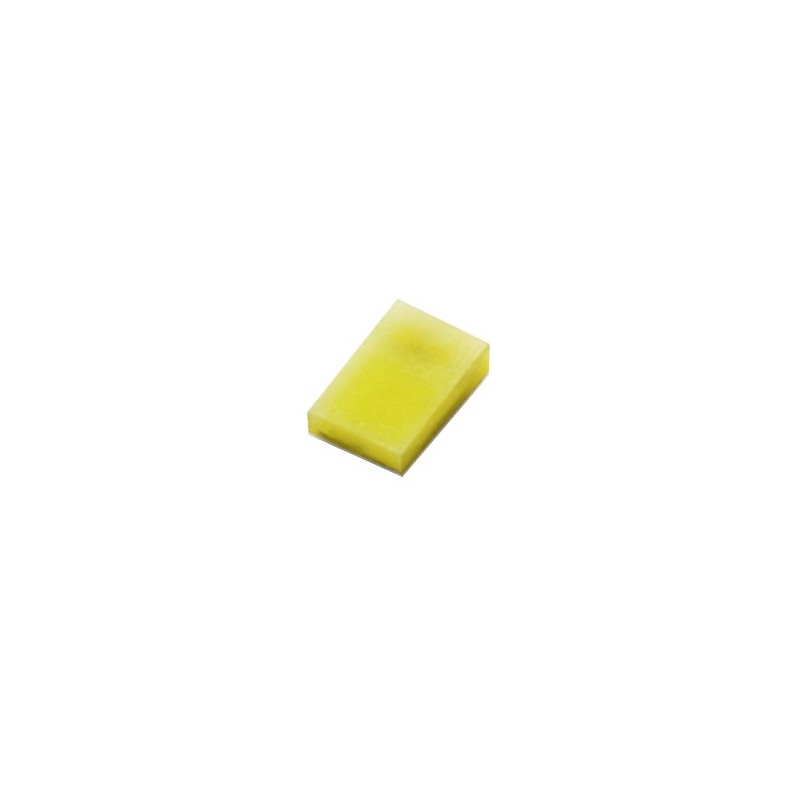

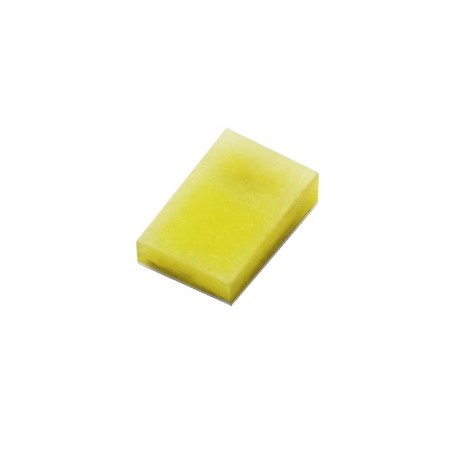

Part Number: CSP0804AN301-RGBC0101-3T

Description
The 0804 CSP LED is much smaller than general components, thus enabling smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Features

․Direct attach-Flip Chip type
․Wide viewing angle.
․Suitable for vapor-phase reflow, Infrared reflow and wave solder processes
․Computable with automatic placement equipment.
․Available on tape and reel (8mm Tape).
․Pb-free.
․The product itself will remain within RoHS compliant version.
․Compliance with EU REACH.
․Compliance Halogen Free .(Br<900ppm,CI<900ppm,Br+CI<1500ppm)
․Precondition: Bases on JEDEC J-STD 020D Level 3

Applications
Status indicator, keypad, keyboard, and industrial equipment.
ALight pipe application.
General use
