Part Number: CSP0603AN101-WP26220453001-3T

Description

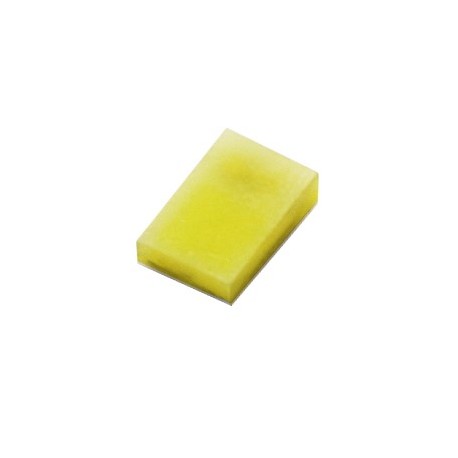

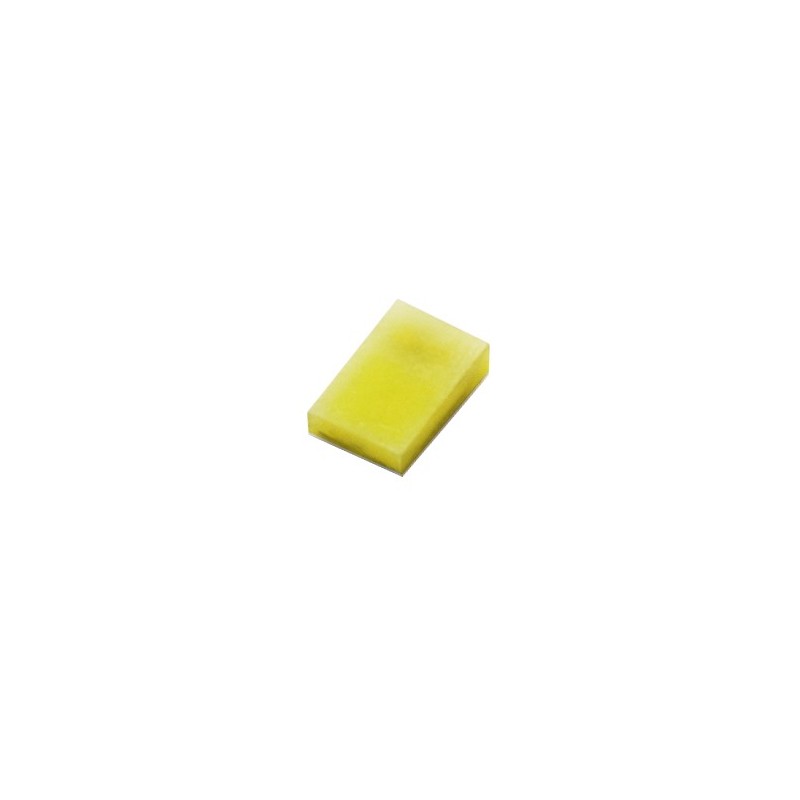

The 0603 CSP LED is much smaller than general components, thus enabling smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Features

Package: CSP package

• Color: White

• Typical luminous intensity: 440 mcd @ 5mA

• Viewing angle : 150o

• ESD : up to 1KV

• Qualifications：AEC standard

• The product itself will remain within RoHS compliant version

• Compliance with RoHS & REACH

• Compliance Halogen Free. (Br<900ppm,CI<900ppm,Br+Cl<1500ppm)

• Precondition: Bases on JEDEC J-STD 020D Level 3

• Qualifications : According to AEC-Q102

Applications
Status indicator, keypad, keyboard, and industrial equipment.
ALight pipe application.
General use
