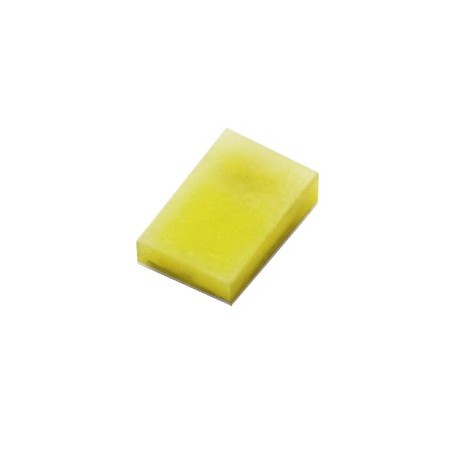

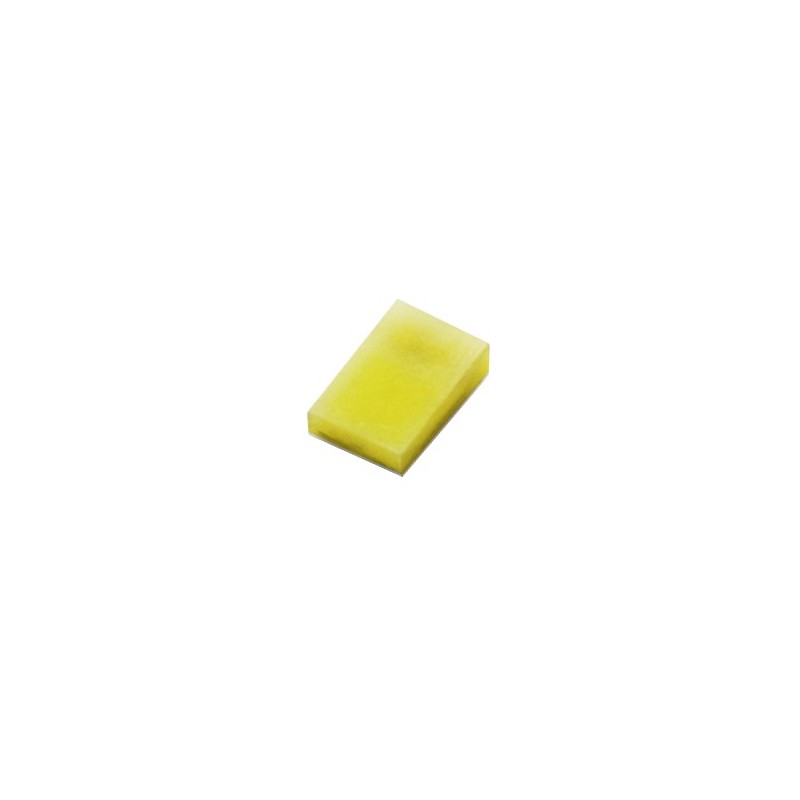

Part Number: CSP0504AN1F1-WP32322803005

Description
The 0504 CSP LED is much smaller than general components, thus enable smaller board size, higher packing density,
reduced storage space and finally smaller equipment to be obtained.

Features

Dimension: 0.55*0.45*0.15 mm LED

Direct attach-Flip Chip type.

Wide viewing angle.

Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.

Computable with automatic placement equipment.

Pb-free.

The product itself will remain within RoHS compliant version.

Compliance with EU REACH.

Compliance Halogen Free. (Br<900ppm,CI<900ppm,Br+CI<1500ppm)

Precondition: Bases on JEDEC J-STD 020D Level 3

Applications
Status indicator, keypad, keyboard, and industrial equipment.

Light pipe application

General Use
