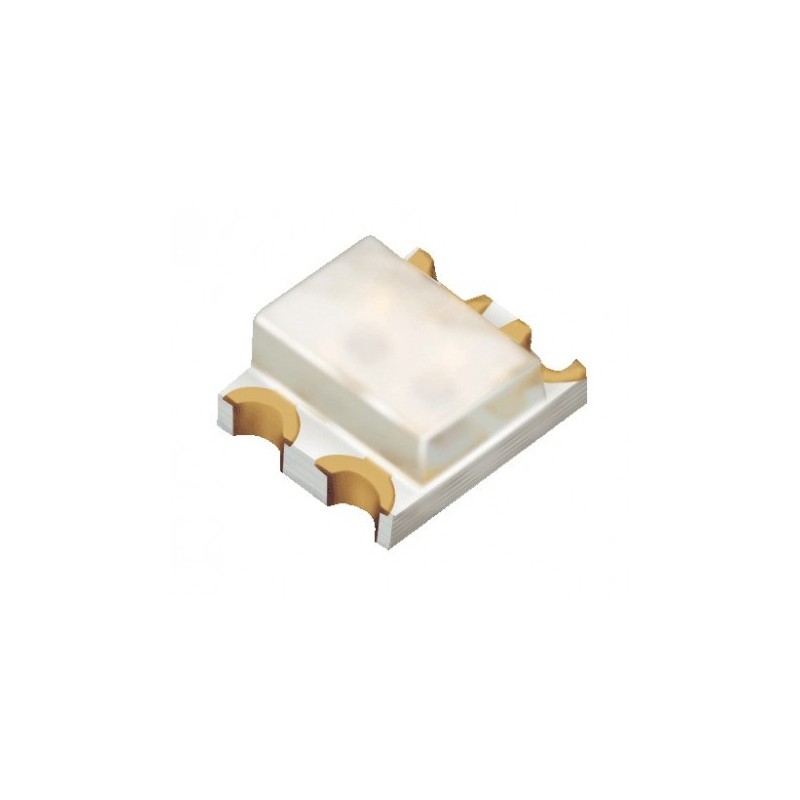

Part Number: 15-22/R8T1D-D30/2T
Red
PLCC Top View SMD LED
Description
The 15-22 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. It's lightweight makes them ideal for miniature applications. etc.
Features
Package in 8mm tape on 7〞diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Mono-color type.
Pb-free.
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.
| Peak Wavelength | 650nm |
| Packaging | Tape & Reel |
| Package | 3227 |
| Orientation | Top View |
| Off State Lens Color | Black |
| Test Current | 2mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -25C |
| Min. Forward Voltage | 1.55/2.50V |
| Width | 2.7mm |
| Viewing Angle | 150 deg. |
| Type | Detector |
| Min. Flux | 4.50/36.0mcd |
| Thickness | 1.4mm |
| Max. Forward current | 25/10mA |
| Max. Flux | 11.5/90..0mcd |
| Max. Dominant Wavelength | 645.5nm |
| Max. Dark Current / Count | 10nA |
| Length | 3.2mm |
| Max. Forward Voltage | 2.15/3.50V |
| Min. Dominant Wavelength | 629.5nm |
| Max. Storage Temp. | 90C |
| Max. Operating Temp. | 85C |
