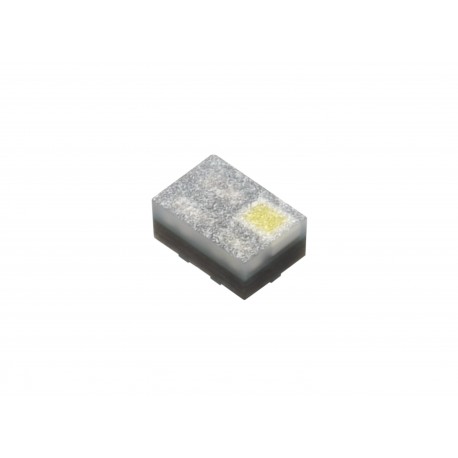

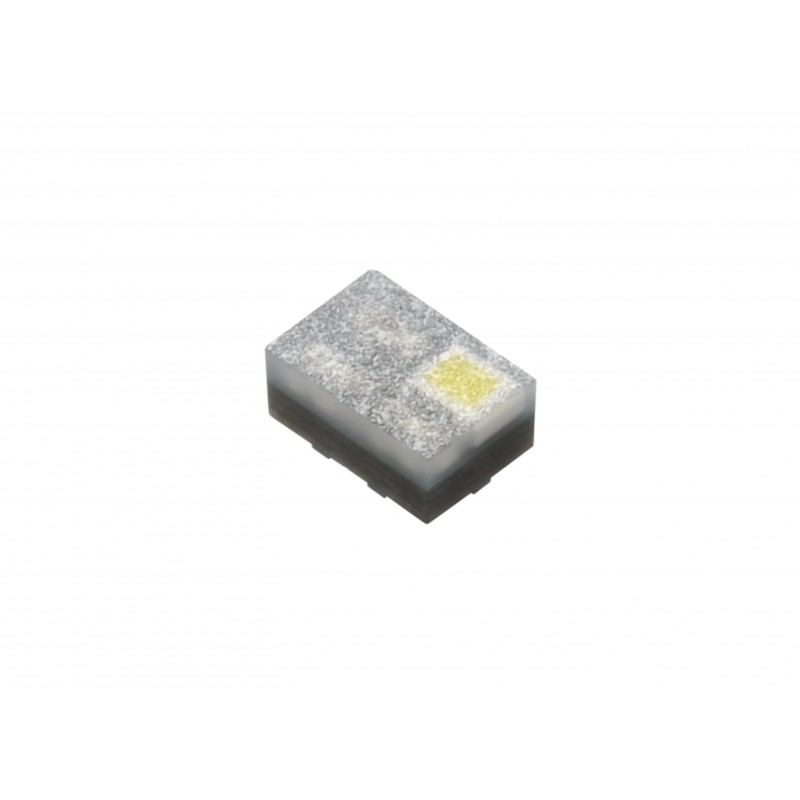

Part Number: B1410FBN4A1-RGBWD0205-4T

Description
The B1410 SMDB LED is much smaller than lead frame type components, thus enabling smaller board size, higher packing density, reduced storage space and smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications, etc.

Features
Package in 8mm tape on 7〞diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow.
Solder process.
Full-color type.
Pb-free.
Component solderable surface finish is Gold.
Component weight is 1.5 mg.
The Product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free.(Br<900ppm,Cl<900ppm,B+Cl<1500ppm).

Applications
Backlightlighting in dashboard and switch.
Telecommunication: indicator and backlighting in telephone and fax
Flat backlight for LCD, switch and symbol.
General Use
