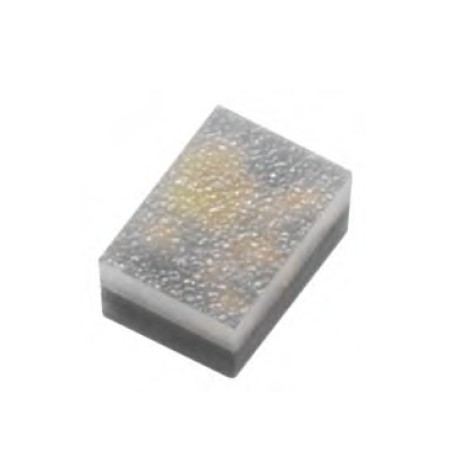

EAST1410RGBW01 View larger

Part Number: EAST1410RGBW01


OrangeDark GreenRoyal Blue

RGBW PCB Top View SMD LED

More details

In Stock

5 Parts

    Description
    This SMD LED is much smaller than lead frame type components, thus enable smaller
    board size, higher packing density, reduced storage space and finally smaller equipment to be
    obtained. Moreover, with its black PCB, it possess an ideal solution for high-contract
    and high-resolution indoor signage display

    Features
    Package in 8mm tape on 7〞diameter reel
    Compatible with automatic placement equipment
    Compatible with infrared and vapor phase reflow
    Solder process
    Full-color type
    Pb-free
    Component solderable surface finish is Gold
    Component weight is 1.5 mg
    The Product itself will remain whithn RoHS compliant version
    Compliance with EU REACH
    Compliance Halogen Free.(Br<900ppm,Cl<900ppm,Br+Cl<1500ppm)

    Applications
    Indoor signage display applications
    Indoor decorating and entertainment design
    Flat backlight for LCD, switch and symbol
    Indicator and backlighting for all consumer electronics

    PackagingTape & Reel
    Package1410
    Test Current1mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.5/2.7/2.7/2.7V
    Width1mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux3/25/5/10mcd
    Thickness0.65mm
    Max. Forward current10mA
    Max. Flux5/40/9/17mcd
    Max. Dominant Wavelength628/539/478nm
    Length1.45mm
    Max. Forward Voltage1.9/2.9/2.9/2.9
    CCT5000K-8000K
    Min. Dominant Wavelength616/523/463nm
    Max. Storage Temp.90C
    Max. Pulsed Current15mA
    Max. Operating Temp.85C
