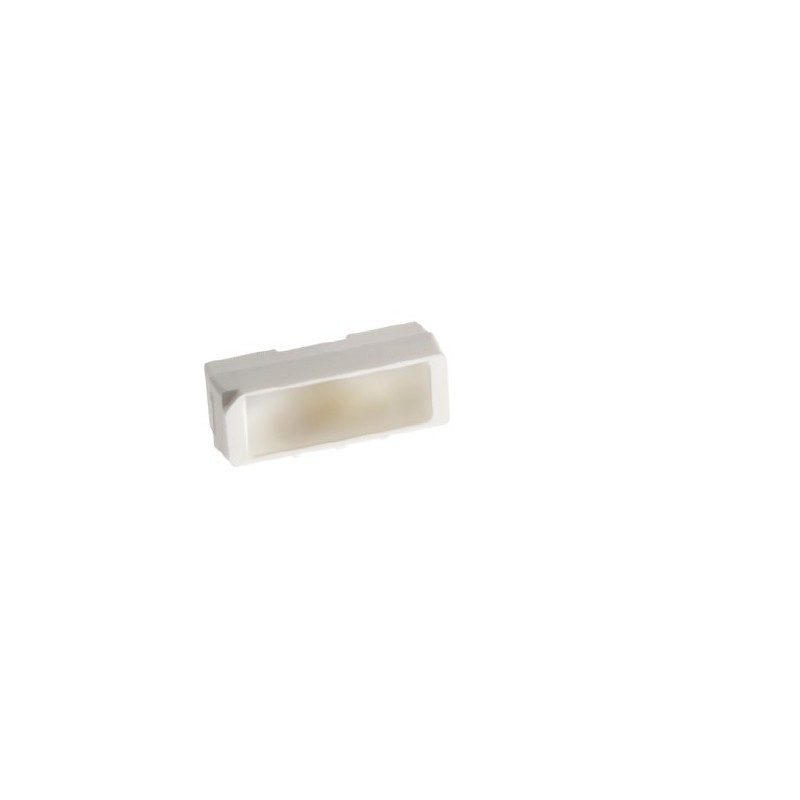

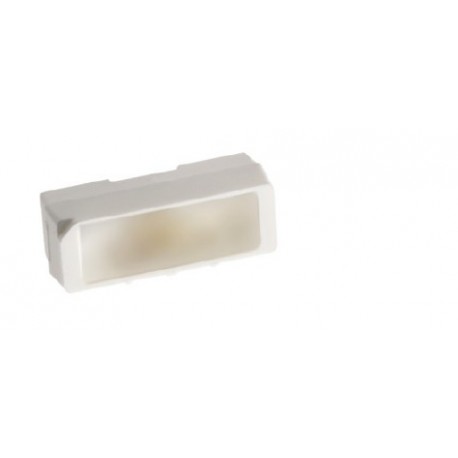

Part Number: C4516SDWN3S1-RGBC0120-2H

Description:
The 4516-IC is a 3-channels LED driver with 8 bit PWM linear control. The 4516-IC uses a single communication wire to identify LED PWM signal and in total 24bit RGB display. This is a very simple and cost effective for any LED model design.
Due to the package design, 4516-IC has wide viewing angle, and low power consumption. The mixture of blue LEDs, green LEDs and red LEDs results in a white emission making it ideal for light pipe application.
The LED PWM output is controlled by duty ration which depends on the 24 bit data each package.

Features:

• P LCC 6 package.
• Inner reflector and white package
• Wide viewing angle 120
• White SMT package.
• Soldering methods: I R reflow soldering.
• Pb free.
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free .(Br<900ppm,CI<900ppm,Br+CI<1500ppm).
• MSL Level 3

Applications:

• Full color LED light strip
• LED decorative lighting
• Gaming Exterior
