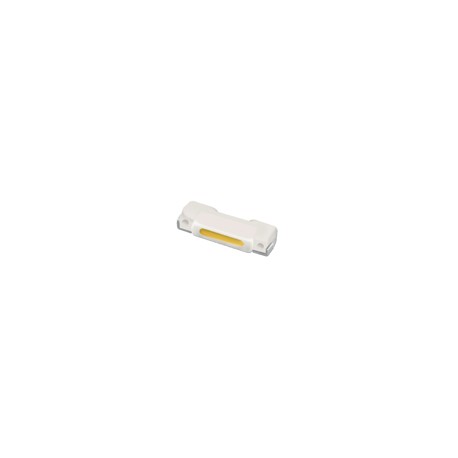

Part Number: 99-218GLM2C/L7785S7W/TR8-T
White

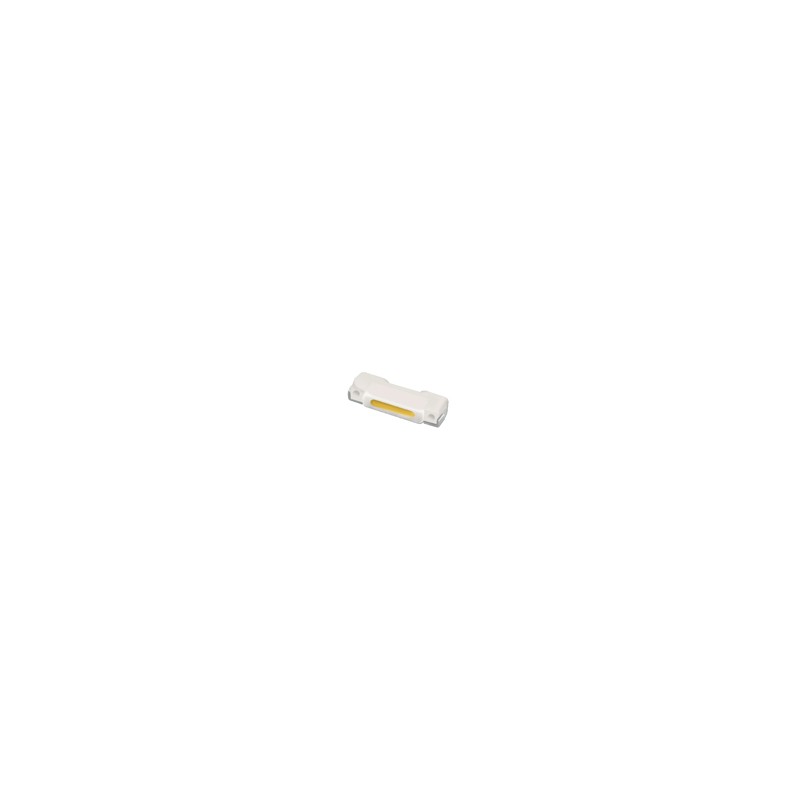

PLCC Side View SMD LED White
On Backorder
- Side view white LED
- White SMT package
- Lead frame package with individual 2 pins
- Wide viewing angle
- Soldering methods: IR reflow soldering
- Pb-free
- The product itself will remain within RoHS compliant version.
- Compliance with EU REACH.
- Compliance Halogen Free (Br <900 PPM, ci<900 ppm, Br+Cl < 1500 ppm).
- Due to the package design, 99-218G has wide viewing angle, low power consumption and white LEDs are devices that are materialized by combining blue chips and special phosphor. This feature makes the LED ideal for light guide application.
- LCD Back Light
- Mobile Phones
- Indicators
- Illuminations
- Switch Light
Features
Description
Applications
| Peak Wavelength | White |
| Packaging | Reel |
| Package | 3809 |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.95V |
| Width | 0.9mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 5.75lm |
| Typ. Dominant Wavelength | White |
| Thickness | 0.4mm |
| Max. Forward current | 30mA |
| Max. Flux | 6.5lm |
| Max. Dominant Wavelength | White |
| Length | 3.8mm |
| Max. Forward Voltage | 3.45V |
| CCT | White |
| Min. Dominant Wavelength | White |
| Max. Storage Temp. | 90C |
| Max. Pulsed Current | 60mA |
| Max. Operating Temp. | 85C |
