Part Number: 67-23/R6GHBHC-B05/2T
OrangeDark GreenRoyal Blue

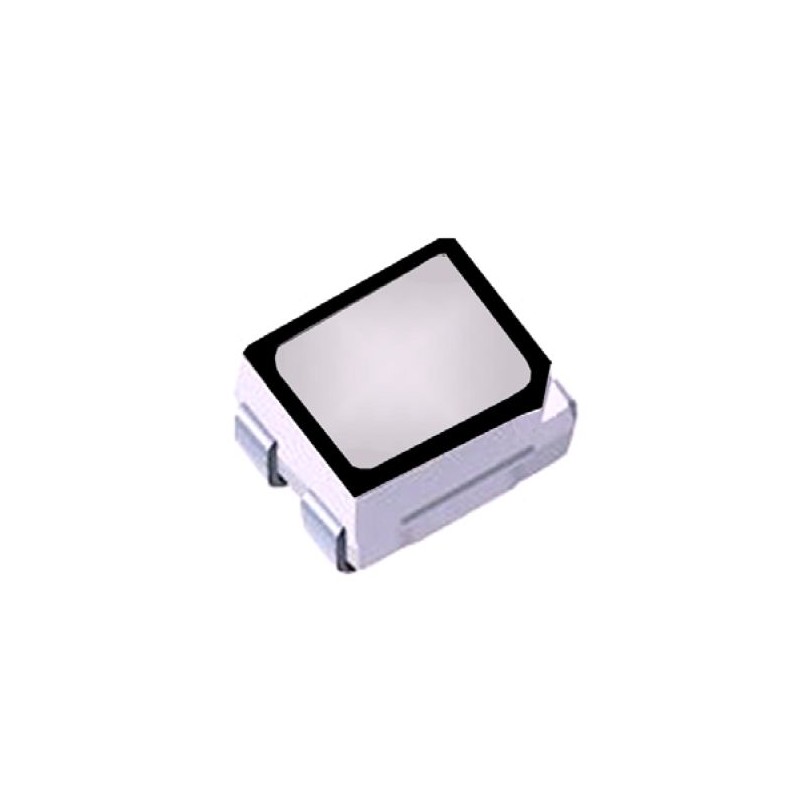

PLCC Top View SMD LED Blue-Green-Red
Features:
P-LCC-4 package.
White package.
Optical indicator.
Colorless clear window.
Pb-free.
The product itself will remain within RoHS compliant version.
Applications:
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.
| Packaging | Tape & Reel |
| Package | 3527 |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Typ. Forward Voltage | 2/3.4/3.4V |
| Width | 2.7mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 112/180/72mcd |
| Thickness | 1.9mm |
| Max. Flux | 285/715/285mcd |
| Max. Dominant Wavelength | 631/530/475nm |
| Length | 3.5mm |
| Max. Forward Voltage | 2.4/3.95/3.95V |
| Min. Dominant Wavelength | 621/520/465nm |
| Max. Storage Temp. | 90C |
| Max. Operating Temp. | 85C |
