Part Number: 67-22/M2C-CDX2Y2N/2T
OrangeMid Green

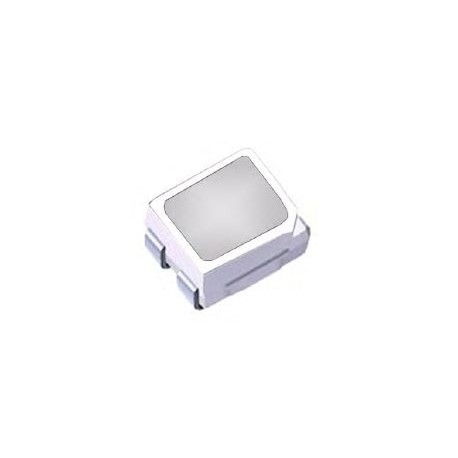

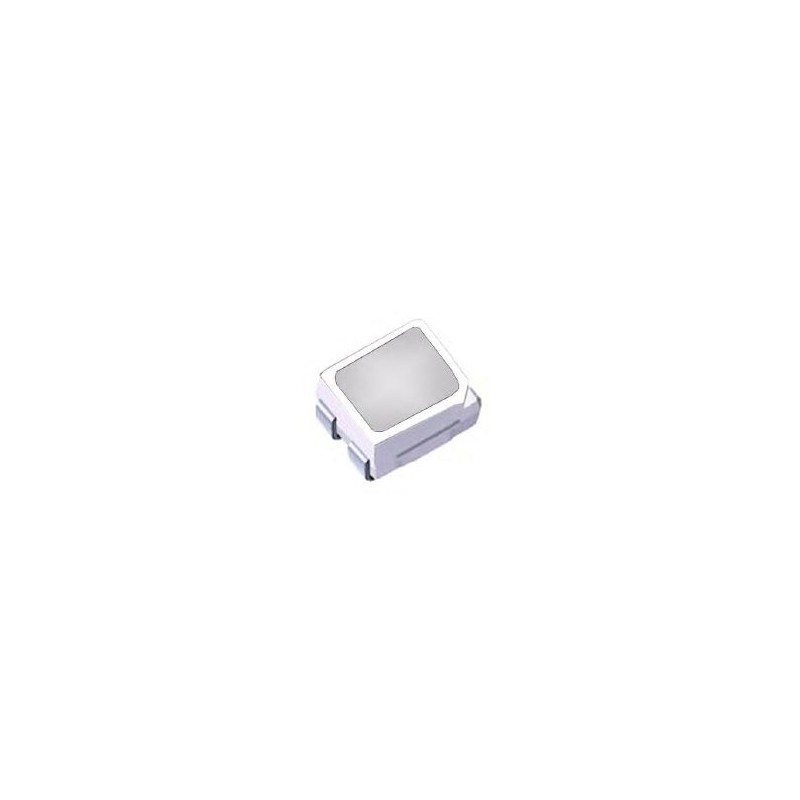

PLCC Top View SMD LED White
Descriptions
The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence. The mixture of blue light and yellow light results in a white emission.
Features
Fluorescence Type
High Luminous Intensity
High Efficiency
Pb-free
The product itself will remain within RoHS compliant version.
Applications:
OA Equipment
Backlighting of Full Color LCD
Automotive Equipment
| Packaging | Tape & Reel |
| Package | 3527 |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.75V |
| Width | 2.7mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 1800mcd |
| Thickness | 1.9mm |
| Max. Forward current | 30mA |
| Max. Flux | 4500mcd |
| Max. Dominant Wavelength | 635/577nm |
| Length | 3.5mm |
| Max. Forward Voltage | 3.95V |
| Min. Dominant Wavelength | 615/565nm |
| Max. Storage Temp. | 95C |
| Max. Pulsed Current | 100mA |
| Max. Operating Temp. | 85C |
