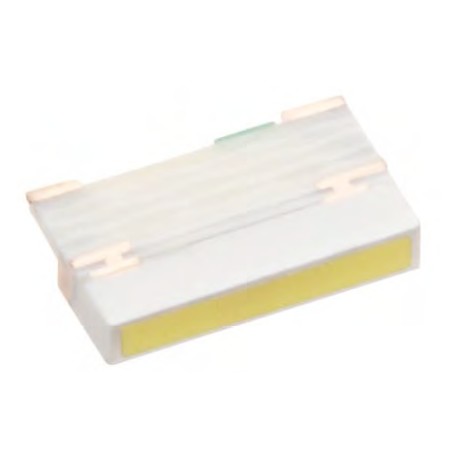

View larger
Part Number: EASV1810WA0
White
Description
This SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Its lightweight makes them ideal for miniature applications. etc.
Features
Package in 8mm tape on 7〞diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Multi-color type.
Pb-free.
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications
Backlighting in dashboard and switch.
Telecommunication: indicator and back-lighting in telephone and fax.
Flat back-light for LCD, switch and symbol.
General use.
| Package | 1810 |
| Mounting | SMD |
| Type | Low-Mid Power |
| Off State Lens Color | Yellow Diffused |
| Length | 1.8mm |
| Width | 1.0mm |
| Thickness | 0.3mm |
| Min. Dominant Wavelength | White |
| Max. Dominant Wavelength | White |
| Viewing Angle | 130 deg. |
| Min. Flux | 180mcd |
| Max. Flux | 360mcd |
| Test Current | 5mA |
| Max. Forward current | 25mA |
| Min. Forward Voltage | 2.7V |
| Max. Forward Voltage | 3.1V |
| Max. Pulsed Current | 100mA |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 85C |
| Packaging | Tape & Reel |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 100C |
