Part Number: 99-213UMC/S1099-4/TR8
White

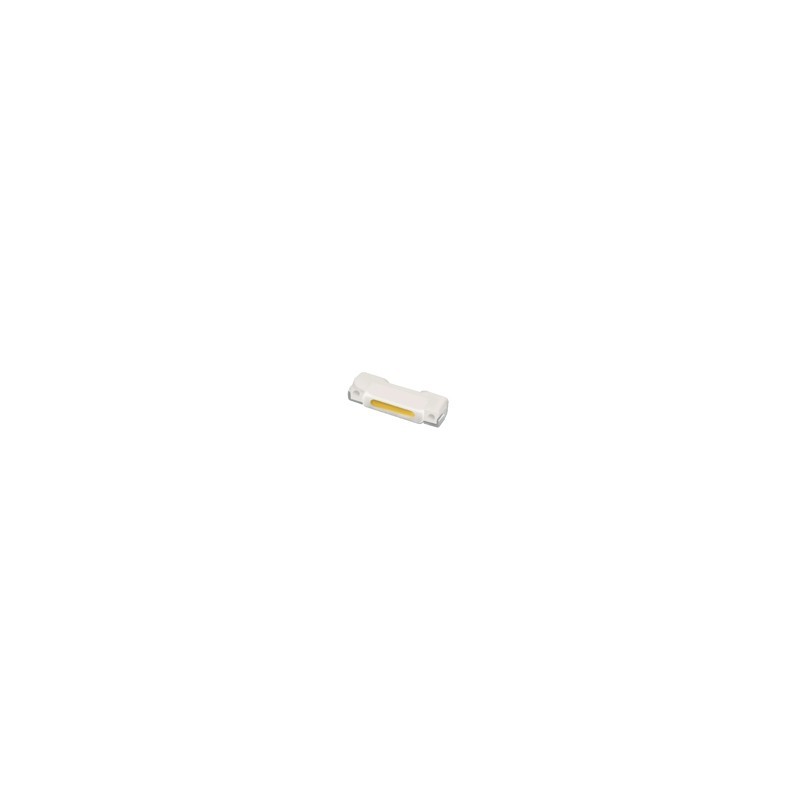

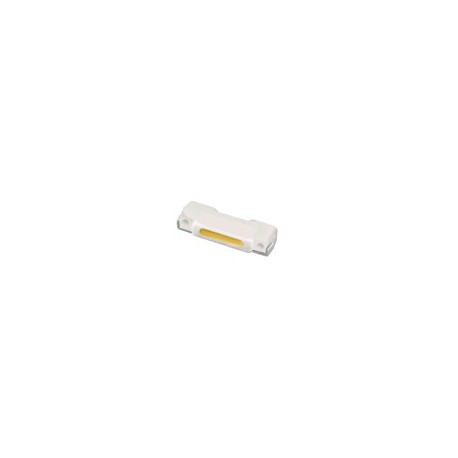

PLCC Side View SMD LED White
- Side View White LED
- White SMT Package
- Lead Frame Package with 2 Pins
- Wide Viewing Angle
- Pb-Free
- RoHS compliant
- Halogen Free
- Mobile Phones
- Indicators
- Illumination
- Switch Light
- LCD backlight
Description:
Due to the package design, 99-213 has a wide viewing angle, low power consumption, and white LEDs devices which are materialized by combining blue chips and special phosphor. This feature makes the LED ideal for light guide application.
Features:
Applications:
| Packaging | Tape & Reel |
| Package | 2812 |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.5V |
| Width | 1.2mm |
| Viewing Angle | 110 deg. |
| Type | Low-Mid Power |
| Min. Flux | 1800mcd |
| Typ. Dominant Wavelength | White |
| Thickness | 0.8mm |
| Max. Forward current | 30mA |
| Max. Flux | 2000mcd |
| Max. Dominant Wavelength | White |
| Length | 2.8mm |
| Max. Forward Voltage | 3.2V |
| Min. Dominant Wavelength | White |
| Max. Storage Temp. | 90C |
| Max. Pulsed Current | 30mA |
| Max. Operating Temp. | 85C |
