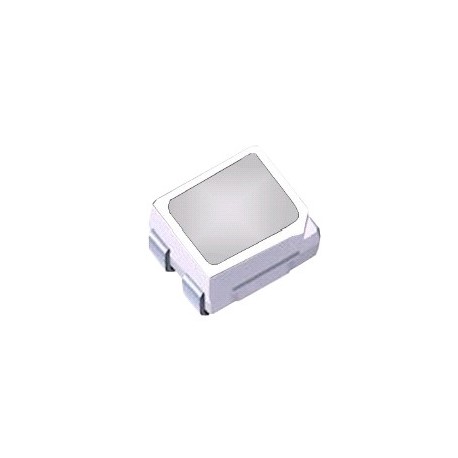

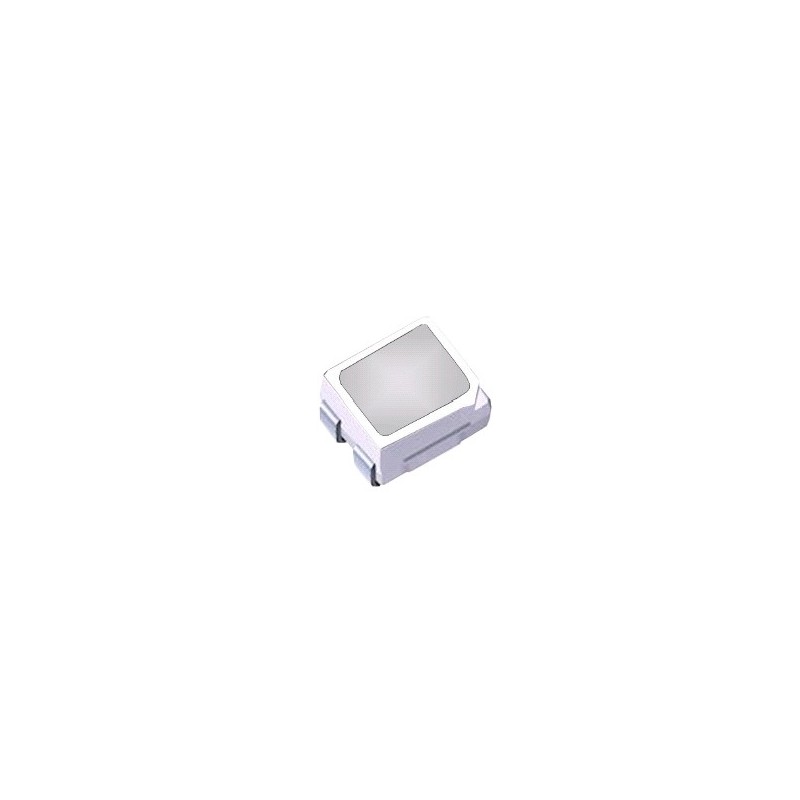

Part Number: EAPL3528RYA0

Description:
The 67-22 series is available in soft red, green,blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Features:
P-LCC-4 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for vapor-phase reflow.
Computable with automatic placement equipment.
Available on tape and reel (8mm Tape).
Pb-free.
The product itself will remain within RoHS compliant version.
Precondition: Bases on JEDEC J-STD 020D Level 3

Applications:
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.
