Dark Green

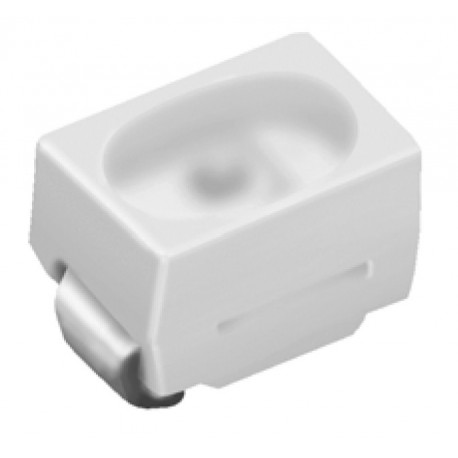

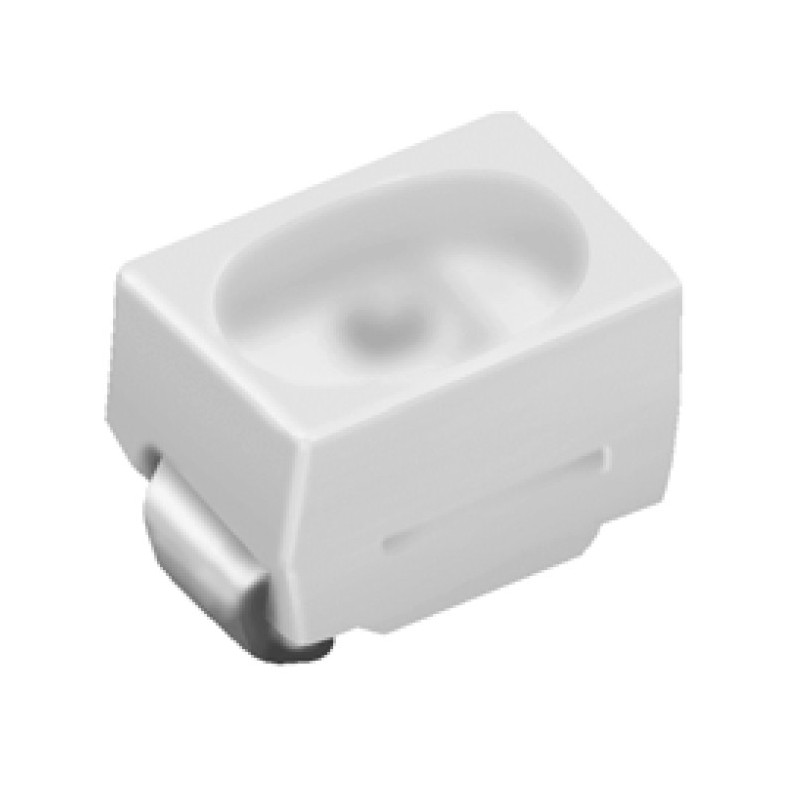

PLCC Top View SMD LED Green
On Backorder
Description:
The 65-21 series is available in soft orange, green, blue, and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes this series ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Features:
White SMT package.
Optical indicator.
Wide viewing angle.
Soldering methods: reflow soldering
Available on tape and reel
Pb-free
The product itself will remain within RoHS compliant version.
Applications:
Optical indicators.
Coupling into light guides.
Backlighting (LCD, cellular phones, switches, keys, displays, illuminated advertising, general lighting).
Coupling into light guides; Interior automotive lighting (e.g. dashboard backlighting, etc.).
Packaging | Tape & Reel |
Package | 2214 |
Off State Lens Color | Water Clear |
Test Current | 20mA |
Mounting | SMD |
Min. Storage Temp. | -40C |
Min. Operating Temp. | -40C |
Min. Forward Voltage | 2.7V |
Width | 1.4mm |
Viewing Angle | 120 deg. |
Type | Low-Mid Power |
Min. Flux | 225mcd |
Thickness | 1.35mm |
Max. Forward current | 25mA |
Max. Flux | 565mcd |
Max. Dominant Wavelength | 535nm |
Length | 2.2mm |
Max. Forward Voltage | 3.7V |
Min. Dominant Wavelength | 520nm |
Max. Storage Temp. | 90C |
Max. Pulsed Current | 100mA |
Max. Operating Temp. | 85C |
