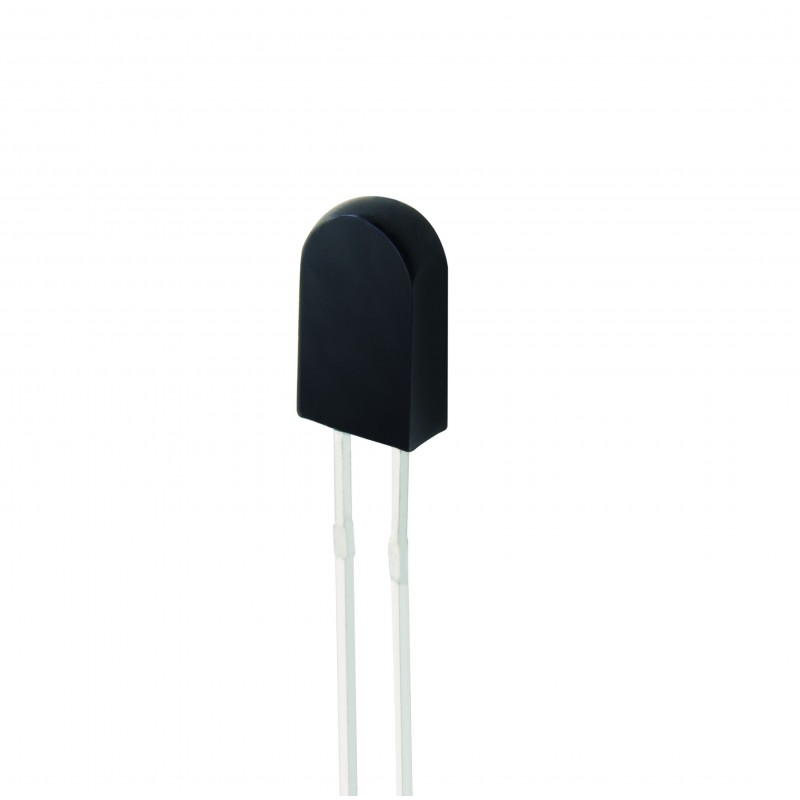

Part Number: PT534-6B
IR Detector - Thru-Hole
Description:
PT534-6B is a high speed and high sensitive NPN silicon phototransistor molded in a standard φ5 mm package.
Due to its black epoxy the device is sensitive to visible and near infrared radiation.
Features:
Fast response time
High photo sensitivity
Pb free
The product itself will remain within RoHS compliant version.
Applications:
Infrared applied system
Camera
Printer
Cockroach catcher
| Peak Wavelength | 940nm |
| Packaging | Bag |
| Package | 5mm Flat Sided |
| Orientation | Top View |
| Off State Lens Color | Black |
| Mounting | Through Hole |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -25C |
| Min. Ic ON | 0.7mA |
| Type | Phototransistor |
| Typ. Rise Time | 15uS |
| Typ. Ic ON | 1.2mA |
| Typ. Fall Time | 15uS |
| Max. Dark Current / Count | 100nA |
| Max. Storage Temp. | 100C |
| Max. Operating Temp. | 85C |
