Part Number: EAPST3216A0
IR Detector - SMD
Description:

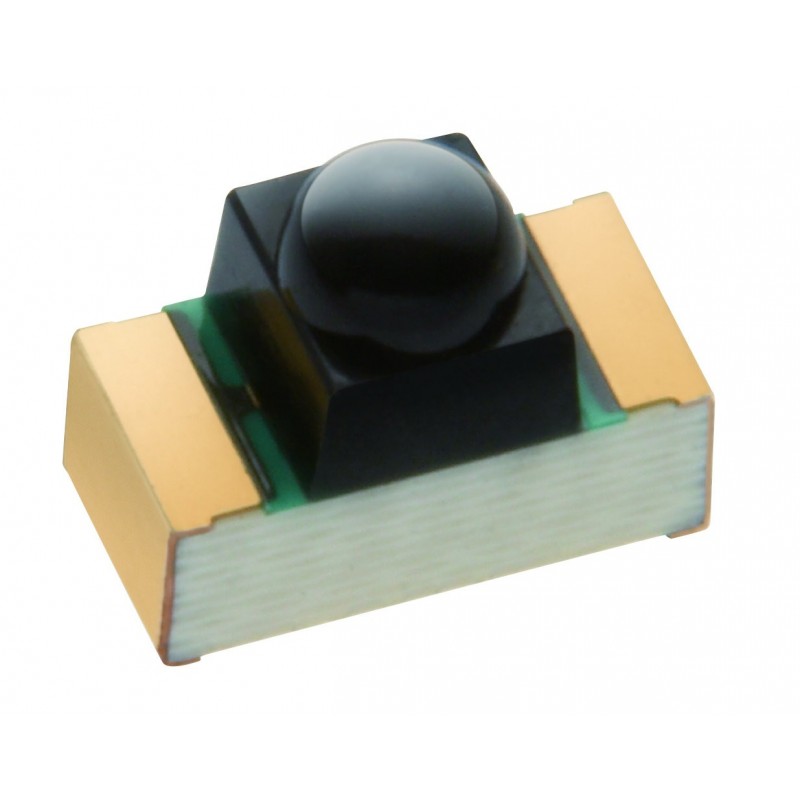

EAPST3216A0 is a phototransistor in miniature SMD package which is molded in a black with spherical top view lens. The device is Spectrally matched to infrared emitting diode.
Features:
Fast response time
High photo sensitivity
Small junction capacitance
Package in 8mm tape on 7” diameter reels.
Pb free
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Applications:
Miniature switch
Counters and sorter
Position sensor
Infrared applied system
| Package | 3015 |
| Orientation | SideView |
| Mounting | SMD |
| Type | Phototransistor |
| Off State Lens Color | Black |
| Length | 3.2mm |
| Width | 1.6mm |
| Thickness | 2.6mm |
| Peak Wavelength | 940nm |
| Reception Angle | 40 deg. |
| Max. Dark Current / Count | 100nA |
| Typ. Rise Time | 15uS |
| Typ. Ic ON | 1mA |
| Typ. Fall Time | 15uS |
| Min. Operating Temp. | -25C |
| Max. Operating Temp. | 85C |
| Packaging | Tape & Reel |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 100C |
