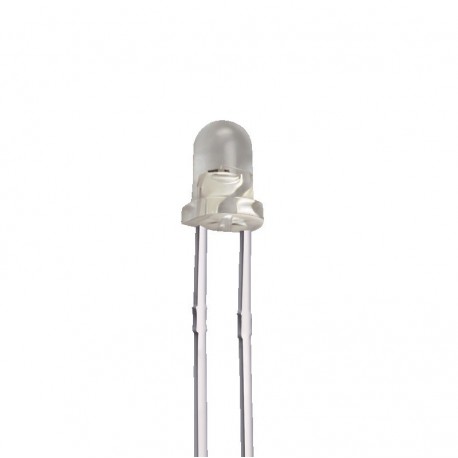

Part Number: EAPDLP03RDAA1
IR Detector - Thru-Hole
Description:
EAPDLP03RDAA1 is a high speed and high sensitive PIN
photodiode in a standard 3Φ plastic package.
Due to its water clear epoxy the device is sensitive to visible and infrared radiation.
Features:
Fast response time
High photo sensitivity
Small junction capacitance
Pb free
This product itself will remain within RoHS compliant version.
Applications:
Automatic door sensor
Camera
Game machine
High speed photo detector
| Package | 3mm Round |
| Orientation | Top View |
| Mounting | Through Hole |
| Type | Photodiode |
| Off State Lens Color | Water Clear |
| Peak Wavelength | 940nm |
| Max. Dark Current / Count | 30nA |
| Typ. Rise Time | 10nS |
| Typ. Fall Time | 10nS |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 85C |
| Packaging | Bag |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 100C |
