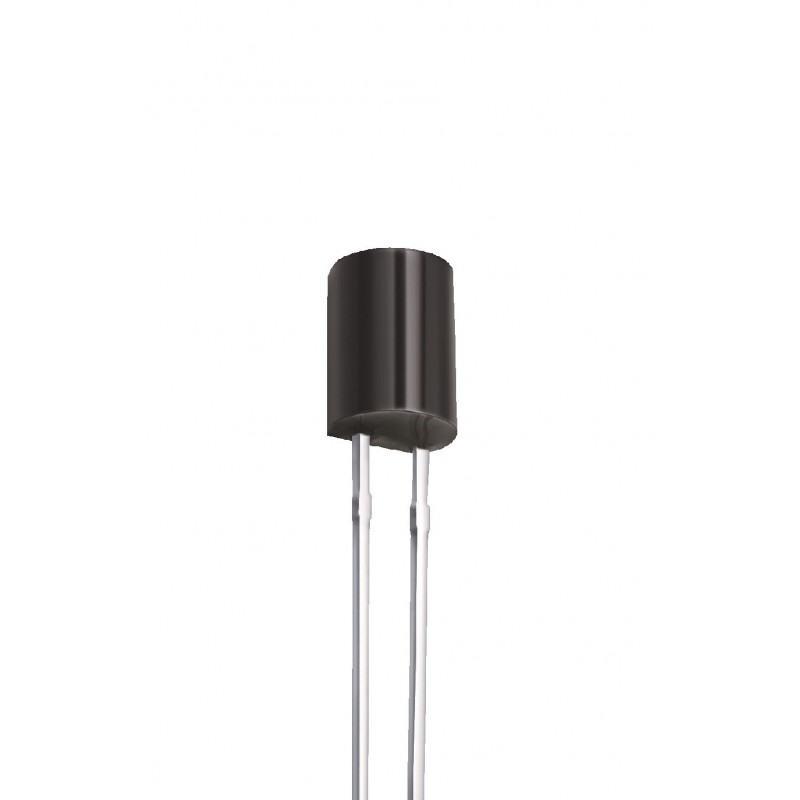

Part Number: PD438B/S46
IR Detector - Thru-Hole
Description:
This part is a high speed and sensitive PIN photodiode in a flat side
view plastic package. The epoxy package itself is an IR filter , spectrally
matched to IR emitter.
Features:
Fast response times
High photo sensitivity
Small junction capacitance
Pb free
The product itself will remain within RoHS compliant version.
Applications:
High speed photo detector
Camera
Optoelectronic switch
VCRs , Video camera
| Peak Wavelength | 940nm |
| Packaging | Bag |
| Package | 4.8mm SemiLens |
| Orientation | SideView |
| Off State Lens Color | Black |
| Mounting | Through Hole |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -25C |
| Type | Photodiode |
| Typ. Rise Time | 50nS |
| Typ. Fall Time | 50nS |
| Max. Dark Current / Count | 30nA |
| Max. Storage Temp. | 85C |
| Max. Operating Temp. | 85C |
