> Products>Optocouplers / Photocouplers>Photo Darlington>6N139M

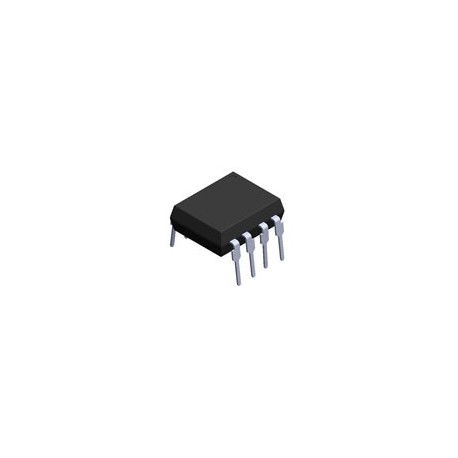

6N139M View larger

Part Number: 6N139M


8-Pin Optocoupler - High Speed

More details

    Description: Photocoupler - High Speed

    Features:
    High current transfer ratio?2000% typical and output (Viso=5000 V rms )
    High isolation voltage between input and output (Viso=5000 Vrms )
    Guaranteed performance from 0?C

    Number of ChannelsSingle
    PackagingTube
    Package8-Pin DIP
    Number of Pins8Pins
    MountingThrough Hole
    Min. Storage Temp.-55C
    Min. Operating Temp.-40C
    Min. Isolation Voltage5000V
    Width6.6mm
    Height3.5mm
    Max. Forward current20mA
    Length9.7mm
    Max. Forward Voltage1.7V
    Common Mode Transient Immunity at High (CMH)1kV/uS
    Min. CTR500%
    Min. CMTI1kV/uS
    Max. Storage Temp.125C
    Max. Saturation Voltage Vce0.4V
    Max. Propagation Delay Tplh60uS
    Max. Power Dissipation100mW
    Max. Operating Temp.85C
