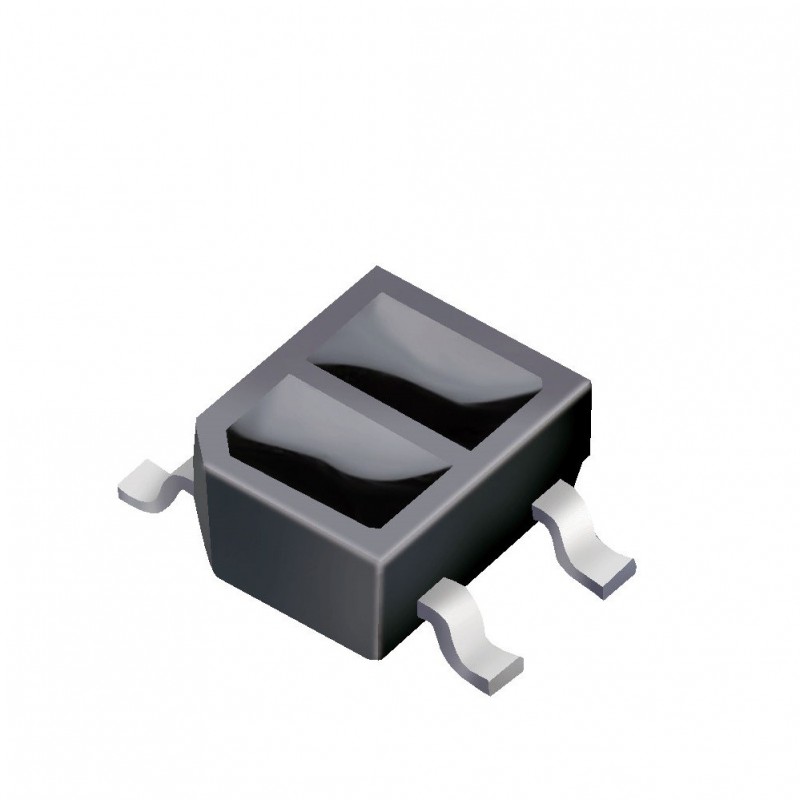

EAITRBA6 View larger

Part Number: EAITRBA6


Reflective IR Opto Switch

More details

On Backorder

    Description:
    The EAITRBA6 consists of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing. The phototransistor receives radiation from the IR only . This is the normal situation. But when an reflecting object close to ITR , phototransistor receives the reflecting radiation .For additional component information, please refer to IR234C/L110 and PT234-6B.

    Features:
    Fast response time
    High analytic
    High sensitivity
    Cut-off visible wavelength λP=940nm
    Pb Free
    This product itself will remain within RoHS compliant version.

    Applications:
    Mouse Copier
    Switch Scanner
    Floppy disk driver
    Non-contact Switching
    For Direct Board

    PackagingTape & Reel
    OrientationReflective
    MountingSMD Gullwing
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Ic ON0.1mA
    Width2.7mm
    TypeTop-View
    Height2.3mm
    Length3.4mm
    Max. Forward Voltage1.6V
    Max. Storage Temp.90C
    Max. Saturation Voltage Vce0.4V
    Max. Operating Temp.85C
