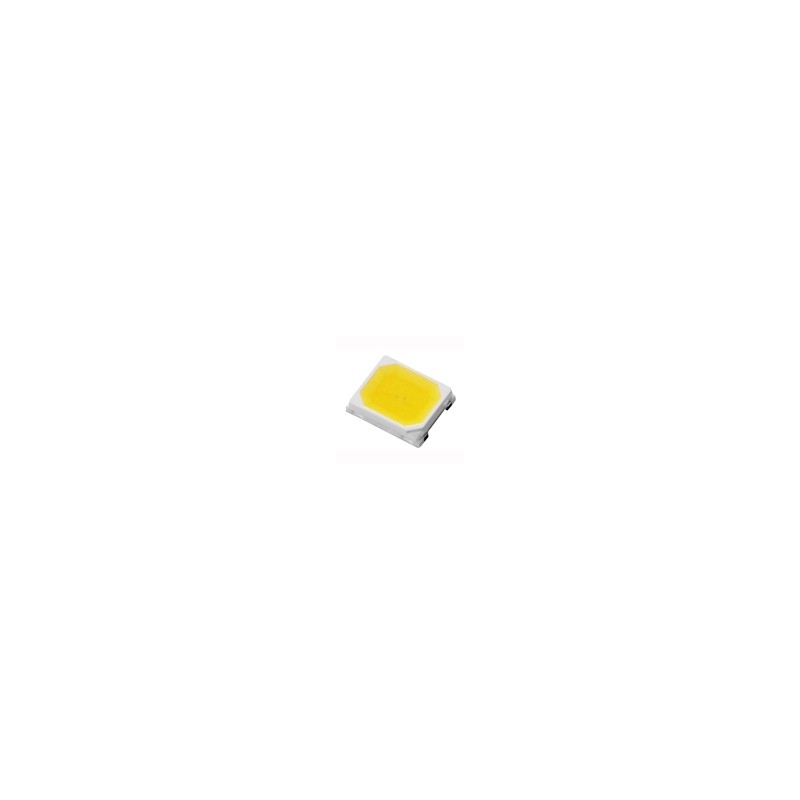

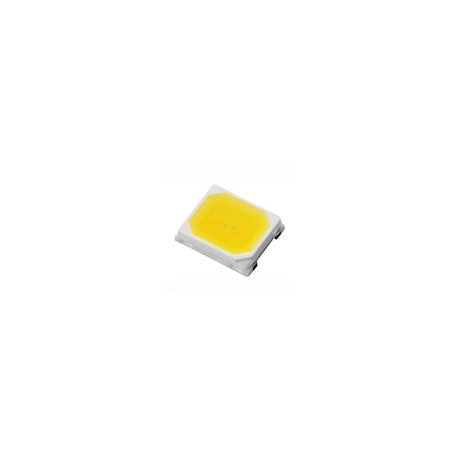

Part Number: 67-21S/HK3C-3H5050M31N42936Z6/2T/EU
White
White Lighting LED
Description
The Everlight 67-21S package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.
Features
PLCC-2 package
Top view white LED
High luminous intensity output
Wide viewing angle
Pb-free
RoHS compliant
ANSI Binning
Applications
General lighting
Decorative and Entertainment Lighting
Indicators
Illumination
Switch lights
| Packaging | Tape & Reel |
| Package | 2835 |
| Test Current | 60mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.9V |
| Width | 3.5mm |
| Viewing Angle | 120 deg. |
| Min. Flux | 20lm |
| Thickness | 0.7mm |
| Max. Forward current | 75mA |
| Max. Flux | 30lm |
| Length | 2.8mm |
| Max. Forward Voltage | 3.6V |
| CCT | 5000K |
| Min. CRI | 90CRI |
| Max. Storage Temp. | 100C |
| Max. Pulsed Current | 100mA |
| Max. Operating Temp. | 85C |
