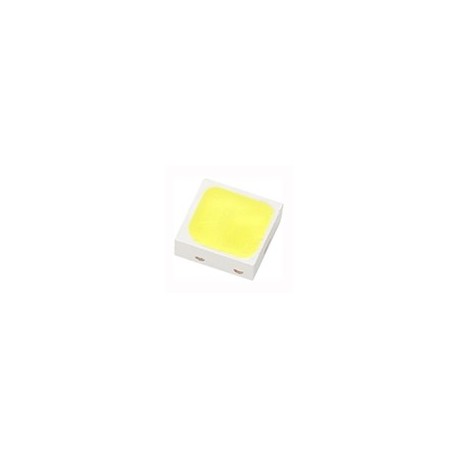

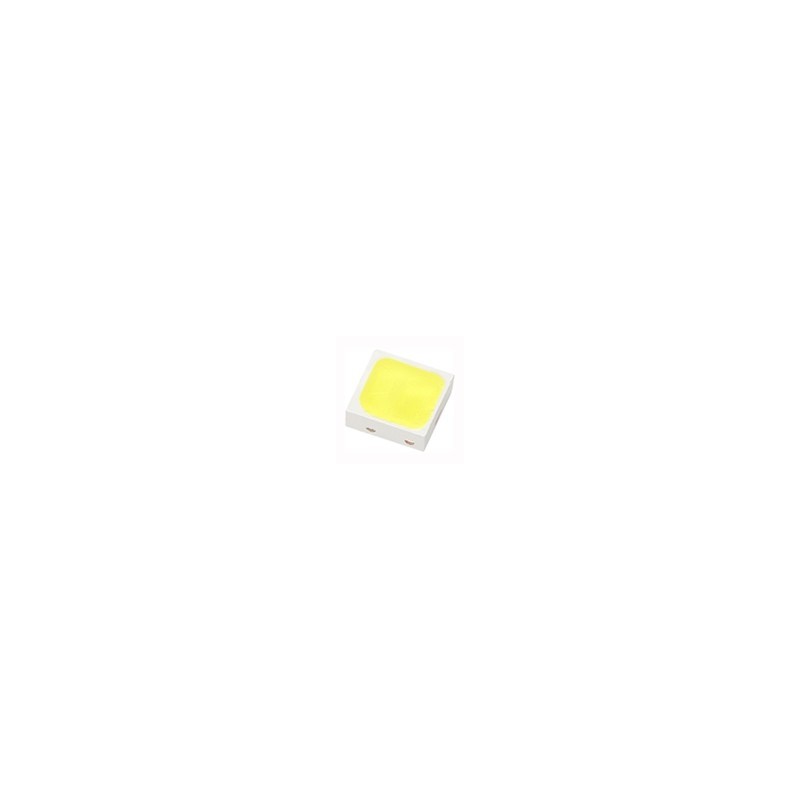

Part Number: EAHP3030WB1
White
White Lighting LED
Description
The Everlight Americas EAHP3030WB1 package has high efficacy, high CRI, mid power consumption, wide viewing
angle and a compact form factor. These features make this package an ideal LED for all lighting applications.
Features
Top view white LED
High luminous intensity output
Typical Viewing Angle:120°
Pb-free
RoHS compliant
Applications
General lighting
Decorative and Entertainment Lighting
Indicators
Illumination
| Packaging | Tape & Reel |
| Package | 3030 |
| Test Current | 35mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 24V |
| Width | 3mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 83lm |
| Typ. Flux | 95lm |
| Thickness | 0.63mm |
| Max. Forward current | 35mA |
| Length | 3mm |
| Max. Forward Voltage | 34V |
| CCT | 2700K |
| Min. CRI | 80CRI |
| Max. Storage Temp. | 100C |
| Max. Pulsed Current | 50mA |
| Max. Operating Temp. | 85C |
