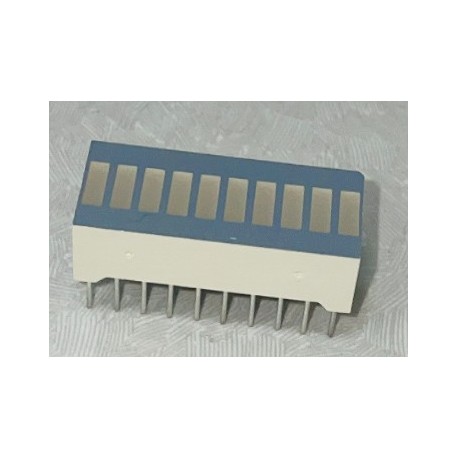

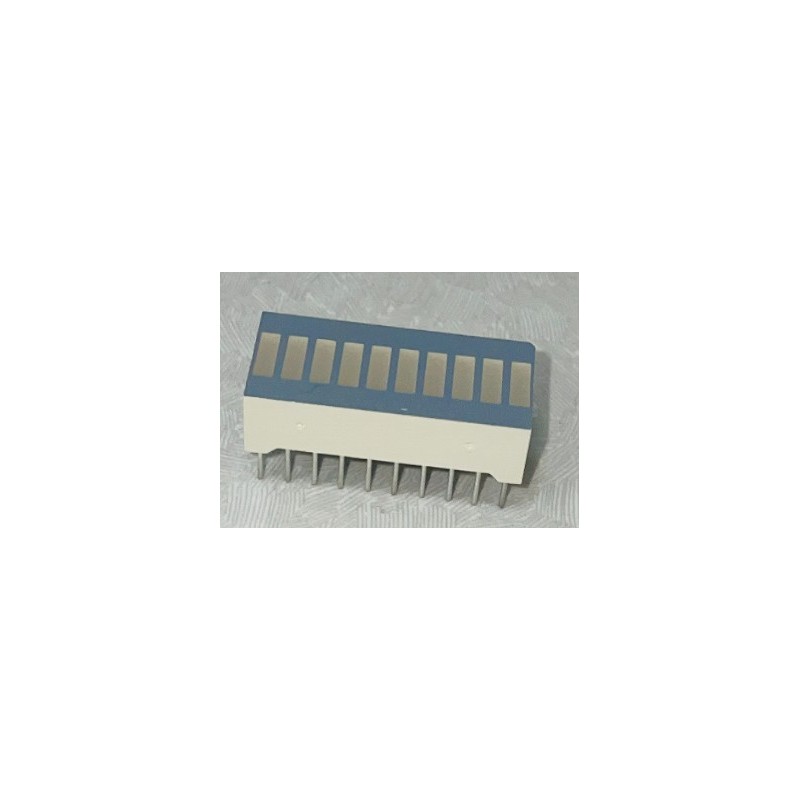

EADLB010RA4 View larger

Part Number: EADLB010RA4


Red

Bar Graph, 10-Segment

More details

In Stock

100 Parts

    Description:
    The EADLB010RA4 is a pattern display designed for viewing distances up to 7 meters.
    The display provides excellent reliability in bright ambient light.
    The device is made with white segments and gray surface.

    Features:
    Industrial standard size.
    Low power consumption.
    Categorized for luminous intensity.
    Pb free and RoHS compliant.

    Applications:
    Home appliances
    Instrument panels
    Digital readout displays

    Package2510
    MountingThrough Hole
    TypeBar Graph, 10-Segment
    Number of Pins20Pins
    Length25.3mm
    Width10.1mm
    Thickness8mm
    Display Emitted Color624nm
    Display Face ColorGray
    Common Anode or CathodeCommon Cathode
    Display Segment AppearanceWht Diffused
    Min. Flux7.6mcd
    Typ. Flux17.6mcd
    Test Current10mA
    Min. Forward Voltage1.7V
    Max. Forward Voltage2.4V
    Max. Pulsed Current60mA
    Min. Operating Temp.-40C
    Max. Operating Temp.85C
    PackagingTube
    Min. Storage Temp.-40C
    Max. Storage Temp.100C
