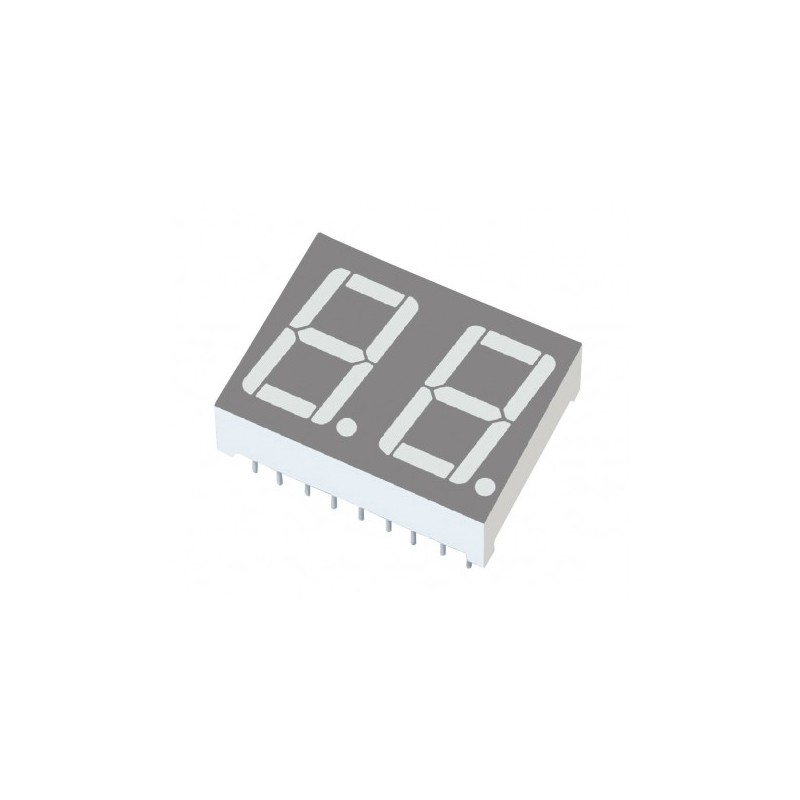

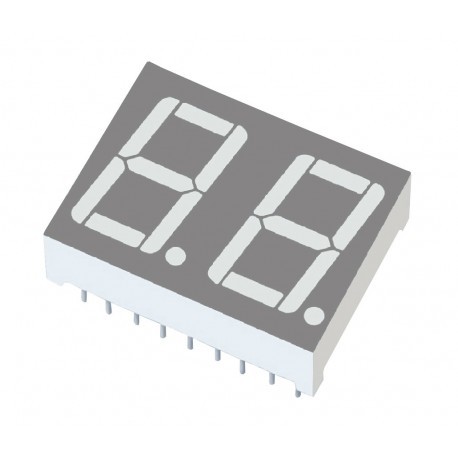

EADCD056RA7 View larger

Part Number: EADCD056RA7


Red

Thru-Hole, 7-Segment, Dual-Digit

More details

In Stock

50 Parts

    Description:
    This is a 14.22mm (0.56”) digit height seven-segment display.
    The display provides excellent reliability in bright ambient light.
    The device is made with white segments and black surface.

    Features:
    Industrial standard size.
    Low power consumption.
    Categorized for luminous intensity.
    Pb free and RoHS compliant.

    Applications:
    Home appliances
    Instrument panels
    Digital readout displays

    Peak Wavelength632nm
    PackagingTube
    PackageRectangle
    Number of Pins18Pins
    Test Current10mA
    MountingThrough Hole
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Typ. Forward Voltage2V
    Width19mm
    Type7-Segment, Two-Digit
    Min. Flux7.8mcd
    Typ. Flux15mcd
    Typ. Dominant Wavelength624nm
    Thickness8mm
    Length25mm
    Max. Forward Voltage2.4V
    Display Segment AppearanceWht Diffused
    Display Face ColorGray
    Display Emitted Color624nm
    Display Digit Height0.56in
    Common Anode or CathodeCommon Cathode
    Max. Storage Temp.100C
    Max. Pulsed Current60mA
    Max. Operating Temp.85C
