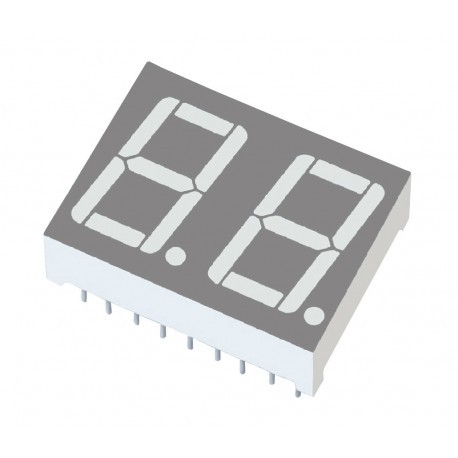

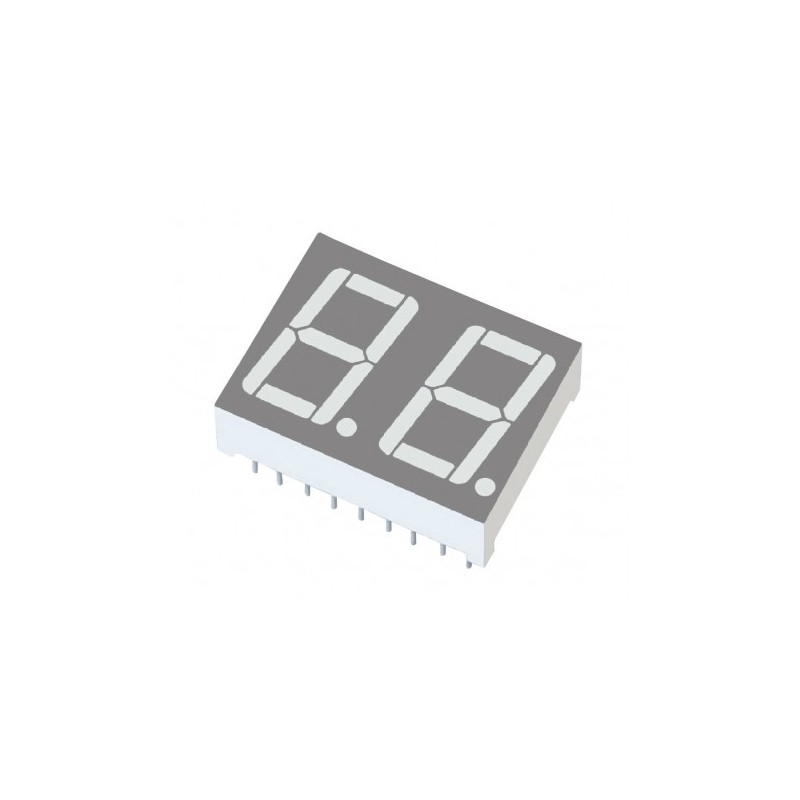

Part Number: EADCD056GA4
Yellow Green
Thru-Hole, 7-Segment, Dual-Digit
Description:
The EADCD056GA6 is a 14.22mm (0.56”) digit height seven-segment display.
The display provides excellent reliability in bright ambient light.
The device is made with white segments and black surface.
Features:
Industrial standard size.
Low power consumption.
Categorized for luminous intensity.
Pb free and RoHS compliant.
Applications:
Home appliances
Instrument panels
Digital readout displays
| Package | Rectangle |
| Mounting | Through Hole |
| Type | 7-Segment, Two-Digit |
| Number of Pins | 18Pins |
| Length | 25mm |
| Width | 19mm |
| Thickness | 8mm |
| Display Emitted Color | 573nm |
| Display Face Color | Gray |
| Common Anode or Cathode | Common Anode |
| Display Digit Height | 0.56in |
| Display Segment Appearance | Wht Diffused |
| Min. Flux | 2.8mcd |
| Typ. Flux | 6.4mcd |
| Test Current | 10mA |
| Min. Forward Voltage | 1.7V |
| Max. Forward Voltage | 2.4V |
| Max. Pulsed Current | 60mA |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 85C |
| Packaging | Tube |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 100C |
