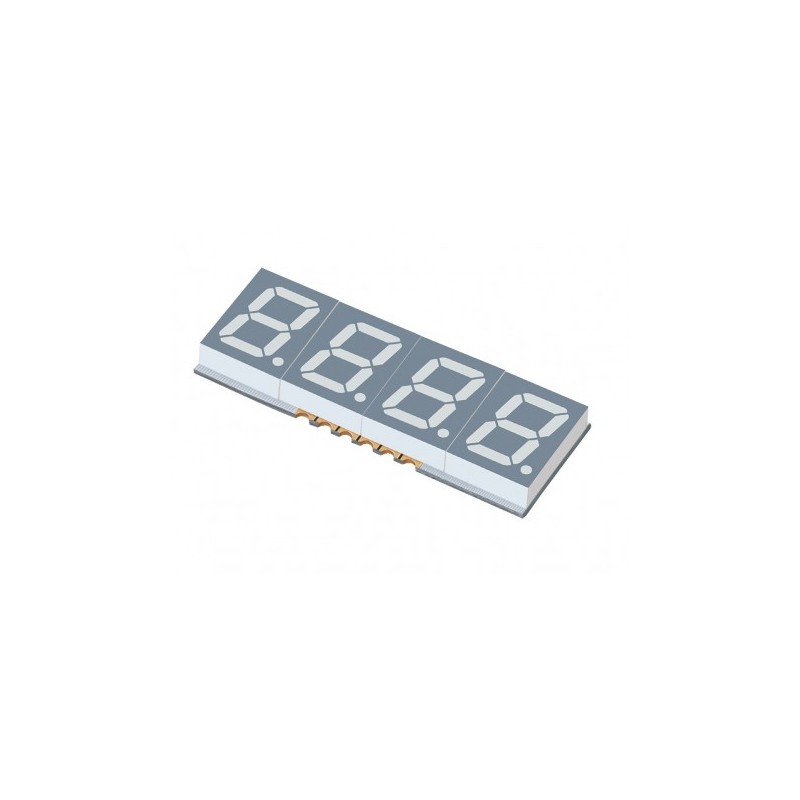

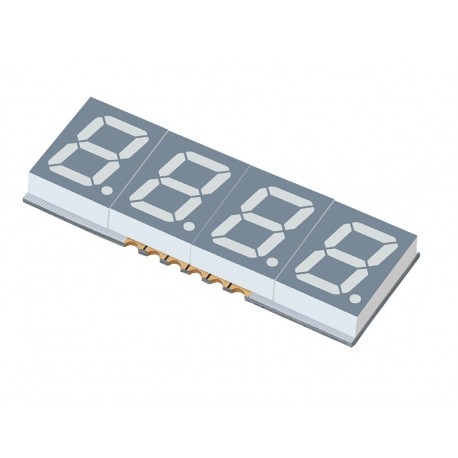

EADSF056GA2 View larger

Part Number: EADSF056GA2


Yellow Green

SMD, 7-Segment, Four-Digit

More details

In Stock

20 Parts

    Description:
    The EADSF056GA2 is a 14.22mm (0.56") digit height seven-segment display.
    The display provides excellent reliability in bright ambient light.
    The device is made with white segments and gray surface.

    Features:
    Industrial standard size.
    Packaged in tape and reel for SMT manufacturing.
    The thickness is thinness than tradition display.
    Low power consumption.
    Categorized for luminous intensity.
    Pb free and RoHS compliant.

    Applications:
    Home appliances.
    Instrument panels.
    Digital readout displays.

    PackageRectangle
    MountingSMD
    Type7-Segment, Four-Digit
    Number of Pins12Pins
    Length50mm
    Width19mm
    Thickness3.75mm
    Display Emitted Color573nm
    Display Face ColorGray
    Common Anode or CathodeCommon Anode
    Display Digit Height0.56in
    Display Segment AppearanceWht Diffused
    Min. Flux45/140mcd
    Typ. Flux8.9mcd
    Test Current10mA
    Min. Forward Voltage1.7V
    Max. Forward Voltage2.4V
    Max. Pulsed Current60mA
    Min. Operating Temp.-40C
    Max. Operating Temp.105C
    PackagingTape & Reel
    Min. Storage Temp.-40C
    Max. Storage Temp.105C
