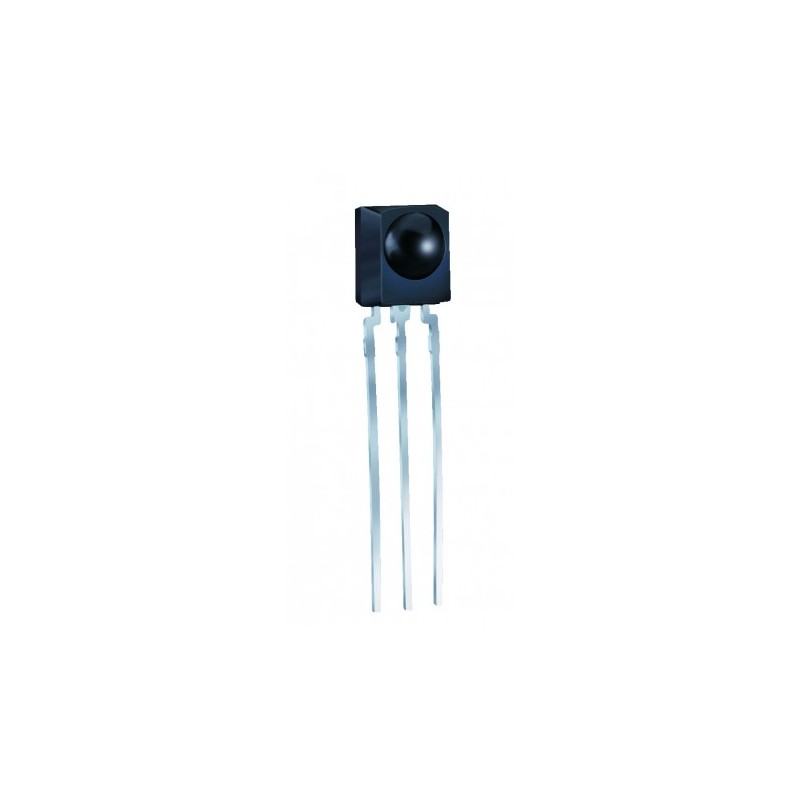

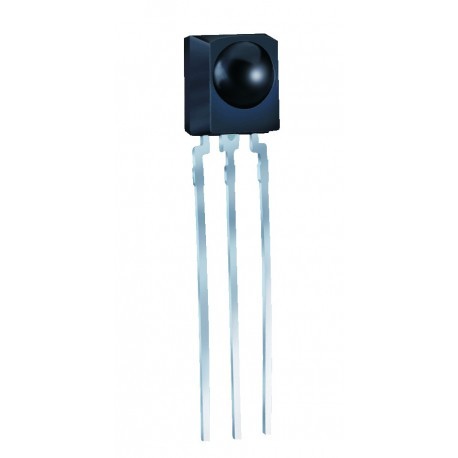

New IRM-3638JT View larger

Part Number: IRM-3638JT


IRM Wide Band - Thru-Hole - Side View

More details

In Stock

250 Parts

    Description:
    The IRM-36XXT devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology.
    The PIN diode and preamplifier are assembled onto a lead frame and molded into a black epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

    Features:

    • Circular lens for improved reception characteristics
    • Available for various carrier frequencies
    • min burst length: 1 2 cycles
    • min gap length: 1 6 cycles
    • Low operating voltage and low power consumption
    • High immunity against ambient light
    • High immunity against TFT and PDP back light
    • Long reception range
    • High sensitivity
    • Pb free and RoHS compliant
    • Compliance with EU REACH


    Applications:

    • Light detecting portion of remote control
    • AV instruments such as Audio, TV, VCR, CD, MD, etc.
    • Home appliances such as Air-conditioner, Fan, etc.
    • The other equipments with wireless remote control.
    • CATV set top boxes
    • Multi-media Equipment
    Peak Wavelength940nm
    PackagingTape & Reel
    PackageRectangle
    OrientationSideView
    Off State Lens ColorWater Clear
    MountingThrough Hole
    Min. Supply Voltage2.7V
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Width6mm
    TypeIRM
    Height6.95mm
    Length5.6mm
    Max. Supply Voltage5.5V
    Max. Storage Temp.100C
    Carrier Frequency38kHz
    Max. Operating Temp.85C
