Part Number: IRM-H538T/TR2

Descriptions:

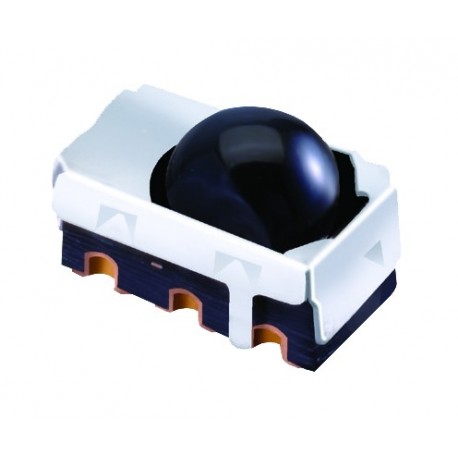

The device is miniature SMD type infrared receiver that has been developed and designed by
utilizing the latest IC technology.
The PIN diode and preamplifier are assembled onto a lead frame and molded into an epoxy package
which operates as an IR filter. The demodulated output signal can directly be decoded by a
microprocessor

Features:
High protection ability against EMI
Circular lens for improved reception characteristics
Available for various carrier frequencies
Min burst length: 10 cycles
Min gap length: 14 cycles
Low operating voltage
High immunity against ambient light
Long reception range
High sensitivity
Pb free and RoHS compliant
Compliance with EU REACH
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications:
Light detecting portion of remote control
AV instruments such as Audio, TV, VCR, CD, MD, etc
Home appliances such as Air-conditioner, Fan, etc
Other devices using IR remote control
CATV set top boxes
Multi-media Equipment
