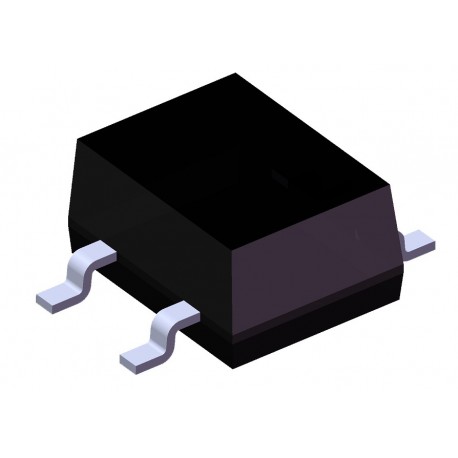

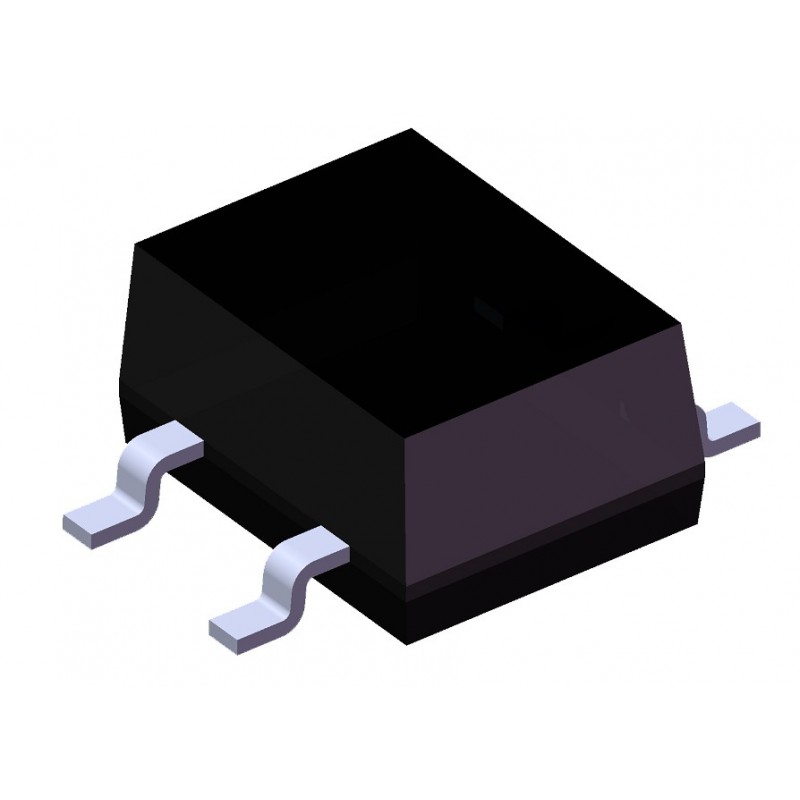

IRM 38 KHz - SMD - Top View
Descriptions:
The device is miniature SMD type infrared receiver that has been developed and designed by utilizing the latest IC technology.
The PIN diode and preamplifier are assembled onto a lead frame and molded into an epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor
Features:
High protection ability against EMI
Circular lens for improved reception characteristics
Available for various carrier frequencies
Min burst length: 10 cycles
Min gap length: 14 cycles
Low operating voltage and low power consumption
High immunity against ambient light
Long reception range
High sensitivity
Pb free and RoHS compliant
Compliance with EU REACH
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Applications:
Light detecting portion of remote control
AV instruments such as Audio, TV, VCR, CD, MD, etc
Home appliances such as Air-conditioner, Fan, etc
Other devices using IR remote control
CATV set top boxes
Multi-media Equipment
Reception Angle | 45 deg. |
Peak Wavelength | 940nm |
Packaging | Tape & Reel |
Package | 5040 |
Orientation | Top View |
Off State Lens Color | Black |
Number of Pins | 3Pins |
Mounting | SMD Gullwing |
Min. Storage Temp. | -40C |
Min. Operating Temp. | -20C |
Width | 2.9mm |
Type | IRM |
Typ. Transmission/Reception Range | 5m |
Typ. Supply Voltage | 3V |
Height | 3.65mm |
Length | 5.3mm |
Min. Burst Length | 400um |
Max. Supply Voltage | 6V |
Max. Storage Temp. | 85C |
Carrier Frequency | 38kHz |
Max. Operating Temp. | 80C |
