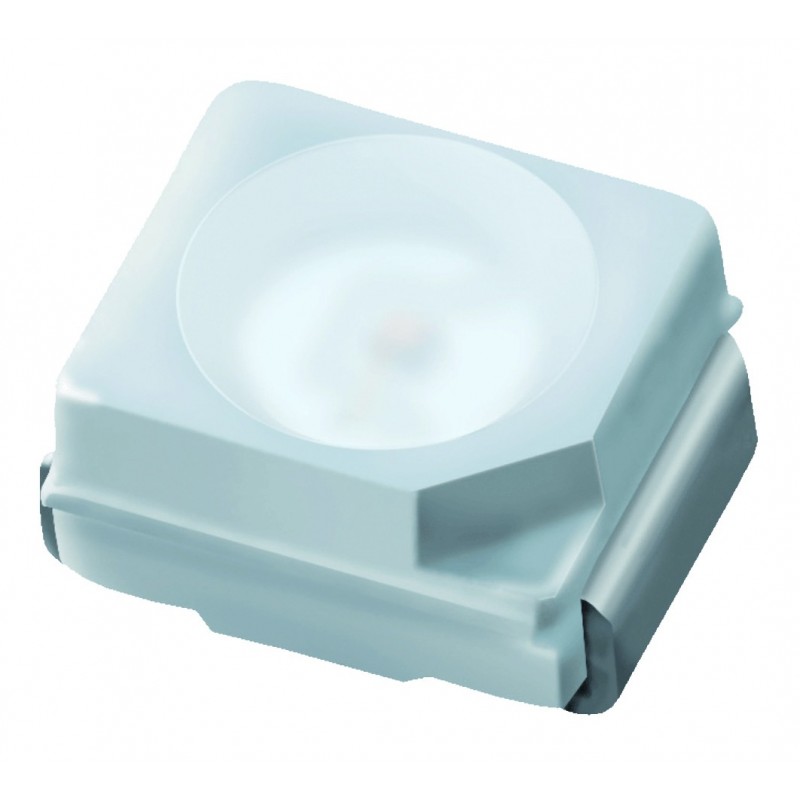

View larger
Part Number: IR67-21C/L261/S58/8T8
IR Emitter - SMD
On Backorder
- Compatible with infrared and vapor phase reflow solder process.
- Low forward voltage.
- View angle 120°
- Pb free
- The product itself will remain within RoHS compliant version.
- Compliance with EU REACH.
- Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
- Sensor
- Optoelectronic switch
- Camera
- VCR
- Video
- Smoke detector
Description
IR67-21C/L261/S58/8T8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens The device is spectrally matched with silicon photodiode and phototransistor.
Features:
Applications:
| Peak Wavelength | 940nm |
| Packaging | Tape & Reel |
| Package | 3528 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Typ. Forward Voltage | 1.2V |
| Width | 2.8mm |
| Viewing Angle | 120 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 1.2mW/sr |
| Thickness | 1.8mm |
| Max. Forward current | 65mA |
| Length | 3.5mm |
| Max. Forward Voltage | 1.5V |
| Max. Storage Temp. | 100C |
| Max. Radiant Intensity | 1.5mW/sr |
| Max. Pulsed Current | 1.0A |
| Max. Operating Temp. | 85C |
