Part Number: EAISG2021A0

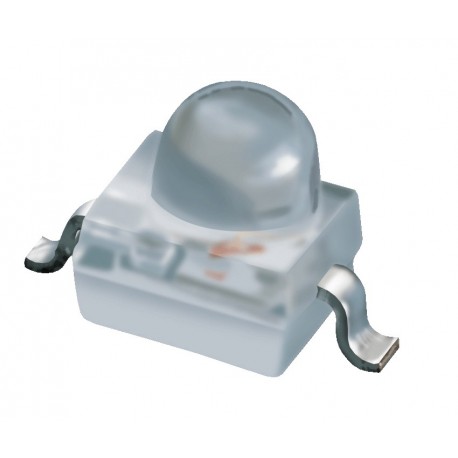

Subminiature Top View SMD LED IR
Descriptions
This is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
Small double-end package
High reliability
Low forward voltage
Good spectral matching to Si photodetector
Pb free
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications
PCB mounted infrared sensor
Infrared emitting for miniature light barrier
Floppy disk drive
Optoelectronic switch
Smoke detector
| Package | 2025 |
| Orientation | Top View |
| Mounting | SMD Gull-Wing Leadform |
| Off State Lens Color | Water Clear |
| Length | 2mm |
| Width | 2.1mm |
| Thickness | 2.7mm |
| Peak Wavelength | 940nm |
| Viewing Angle | 25 deg. |
| Test Current | 20mA |
| Max. Forward current | 65mA |
| Typ. Forward Voltage | 1.2V |
| Max. Forward Voltage | 1.5V |
| Min. Radiant Intensity | 3mW/sr |
| Typ. Radiant Intensity | 5mW/sr |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 85C |
| Packaging | Tape & Reel |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 90C |
