Part Number: EAIST3026A0
IR Emitter - SMD
On Backorder
Features:
Small double-end package
Low forward voltage
Good spectral matching to Si photo detector
Package in 8mm tape on 7〞diameter reel.
Pb free
The product itself will remain within RoHS compliant version.
Description:

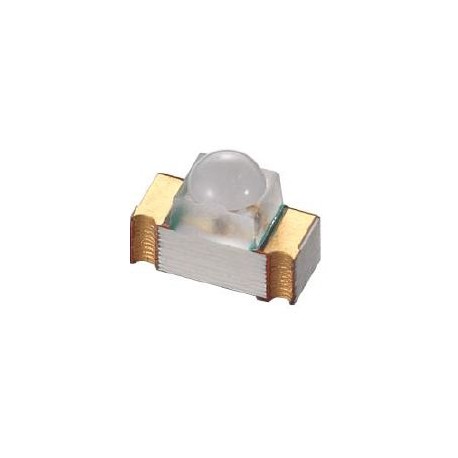

EAIST3026A0 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Applications:
Infrared applied system
| Peak Wavelength | 940nm |
| Packaging | Tape & Reel |
| Package | 3024 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 4mW/sr |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 1.15V |
| Typ. Forward Voltage | 1.25V |
| Width | 2.4mm |
| Viewing Angle | 20 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 17mW/sr |
| Thickness | 2.65mm |
| Max. Forward current | 65mA |
| Length | 3mm |
| Max. Forward Voltage | 1.5V |
| Max. Storage Temp. | 85C |
| Max. Operating Temp. | 85C |
