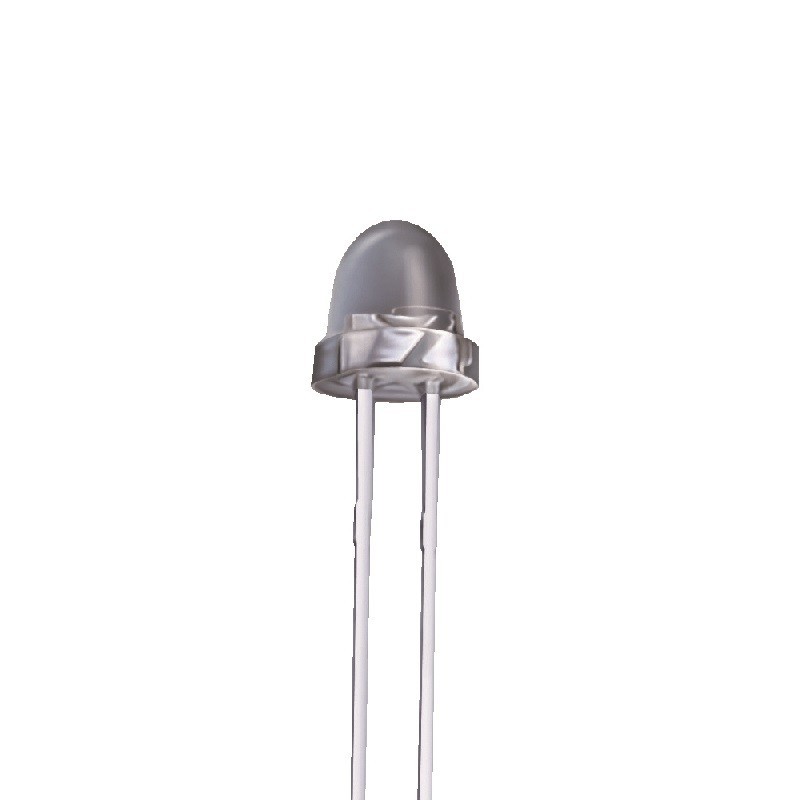

Part Number: IR383-75
IR Emitter - Thru-Hole
Features:
High reliability
High radiant intensity
Peak wavelength p=940nm
2.54mm Lead spacing
Low forward voltage
Pb Free
This product itself will remain within RoHS compliant version.
Description:
EVERLIGHT’s Infrared Emitting Diode (IR383-75 ) is a high intensity diode , molded in a blue transparent plastic package.
The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
Applications:
Free air transmission system
Infrared remote control units with high power requirement
Smoke detector
Infrared applied system
| Peak Wavelength | 940nm |
| Packaging | Bag |
| Package | 5mm Round |
| Orientation | Top View |
| Off State Lens Color | Blue |
| Test Current | 20mA |
| Mounting | Through Hole |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 21mW/sr |
| Min. Operating Temp. | -40C |
| Typ. Forward Voltage | 1.2V |
| Viewing Angle | 20 deg. |
| Type | Emitter |
| Max. Forward current | 100mA |
| Max. Forward Voltage | 1.5V |
| Max. Storage Temp. | 100C |
| Max. Operating Temp. | 85C |
