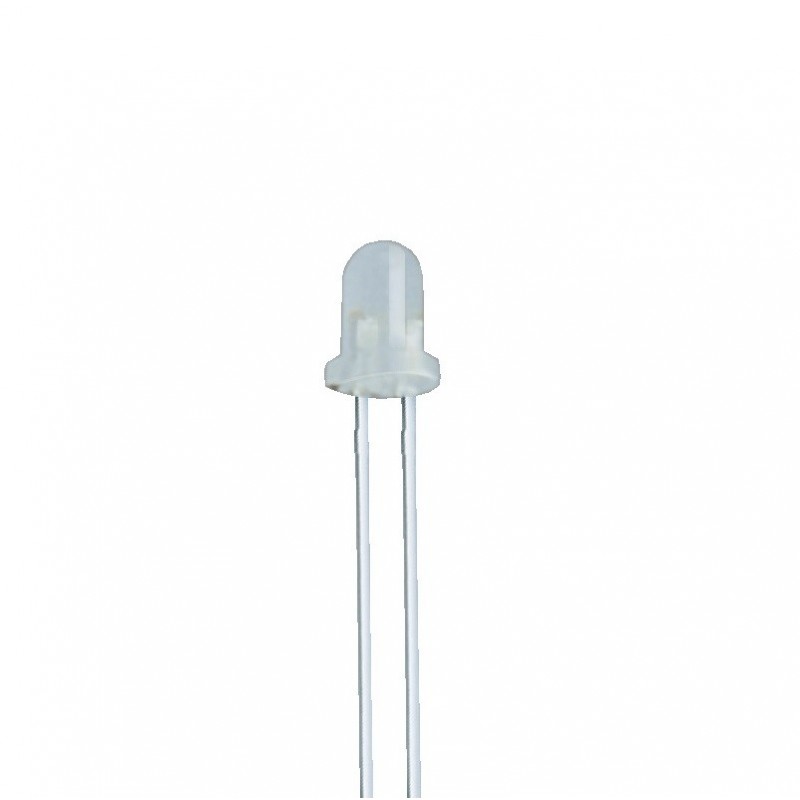

Part Number: SIR204-A
IR Emitter - Thru-Hole
Description:
Everlight Americas Infrared Emitting Diode (SIR204-A ) is a high intensity diode , molded in a blue transparent plastic package.
The device is spectrally matched with phototransistor , photodiode and infrared receiver module
Features:
High reliability
High radiant intensity
Peak wavelength λp=875nm
2.54mm Lead spacing
Low forward voltage
Pb Free
Applications:
Optoelectronic switch
Infrared applied system
Smoke detector
| Peak Wavelength | 875nm |
| Packaging | Bag |
| Package | 3mm Round |
| Orientation | Top View |
| Off State Lens Color | Blue |
| Test Current | 20mA |
| Mounting | Through Hole |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 4mW/sr |
| Min. Operating Temp. | -40C |
| Typ. Forward Voltage | 1.3V |
| Viewing Angle | 30 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 6.4mW/sr |
| Max. Forward current | 100mA |
| Max. Forward Voltage | 1.65V |
| Max. Storage Temp. | 100C |
| Max. Pulsed Current | 1000mA |
| Max. Operating Temp. | 85C |
