Part Number: IR42-21C/TR8
IR Emitter - SMD
Descriptions:

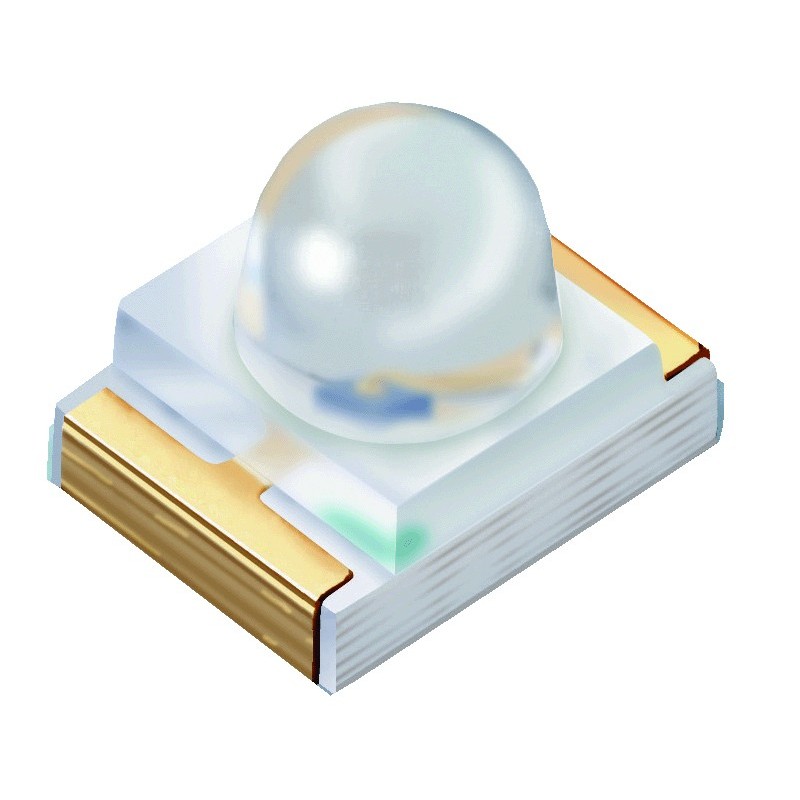

IR42-21C/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens.
The device is spectrally matched with silicon photodiode and phototransistor.
Features:
Compatible with infrared and vapor phase reflow solder process.
Low forward voltage
Good spectral matching
to Si photodetector
Pb free
The product itself will remain within RoHS compliant version.
Applications:
PCB mounted infrared sensor
Infrared emitting for miniature light barrier
Floppy disk drive
Optoelectronic switch
Smoke detector
| Peak Wavelength | 940nm |
| Packaging | Tape & Reel |
| Package | 3224 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 20mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 1mW/sr |
| Min. Operating Temp. | -25C |
| Typ. Forward Voltage | 1.2V |
| Width | 2.4mm |
| Viewing Angle | 30 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 3mW/sr |
| Thickness | 2.5mm |
| Length | 3.2mm |
| Max. Forward Voltage | 1.5V |
| Max. Storage Temp. | 85C |
| Max. Operating Temp. | 85C |
