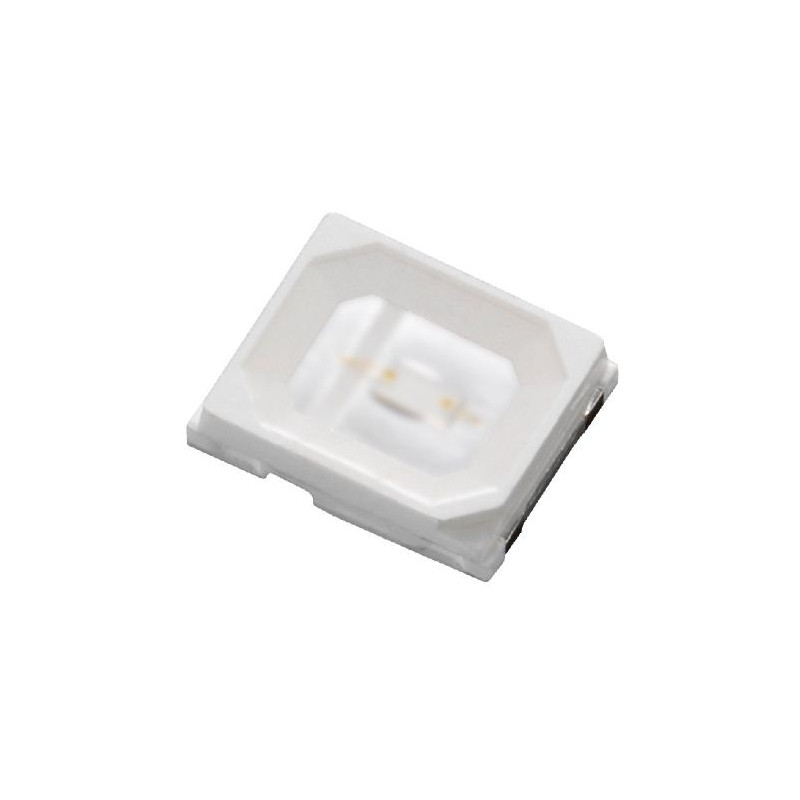

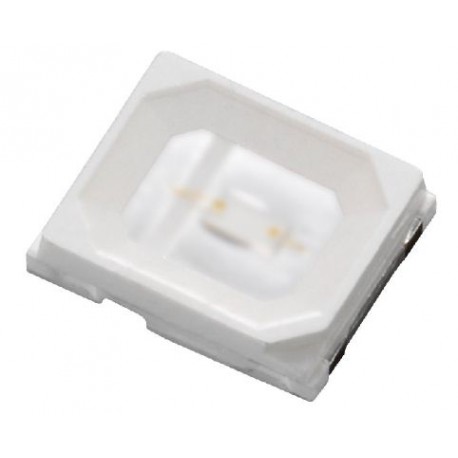

Part Number: 67-21S/Y2C-D8595B7L32128Z6/2T


Yellow

Yellow Lighting LED

More details

In Stock

30 Parts

    Description
    The Everlight 67-21S package has high efficacy, low power consumption, wide viewing angle and a compact
    form factor. These features make this package an ideal LED for all lighting applications.

    Features
    PLCC-2 package
    Top view Blue LED
    Wide viewing angle
    Pb-free
    RoHS compliant

    Applications
    Decorative and Entertainment Lighting
    Agriculture Lighting
    General use

    PackagingTape & Reel
    Package2835
    Off State Lens ColorWater Clear
    Test Current60mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.15V
    Width3.5mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux8.5lm
    Thickness0.7mm
    Max. Forward current70mA
    Max. Flux13lm
    Max. Dominant Wavelength595nm
    Length2.8mm
    Max. Forward Voltage2.75V
    Min. Dominant Wavelength585nm
    Max. Storage Temp.100C
    Max. Pulsed Current140mA
    Max. Operating Temp.85C
