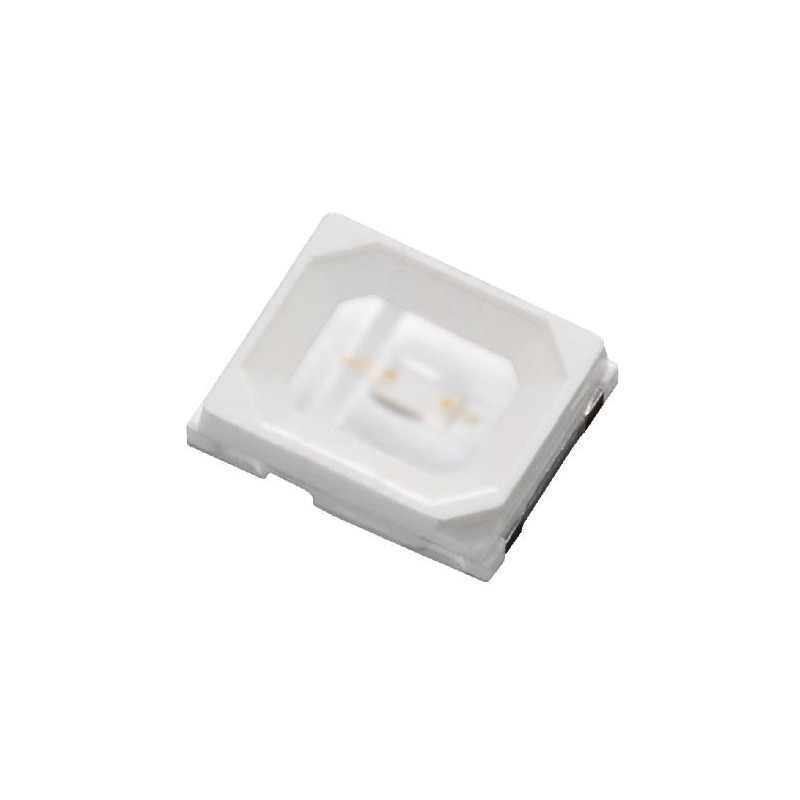

EAPL2835WC0 View larger

Part Number: 67-21S/NR2C-D2030B6L22230Z6/2T


Orange

Red Lighting LED

More details

In Stock

3470 Parts

    Description
    The Everlight 67-21S package has high efficacy, low power consumption, wide viewing angle and a compact
    form factor. These features make this package an ideal LED for all lighting applications.

    Features
    PLCC-2 package
    Top view Blue LED
    Wide viewing angle
    Pb-free
    RoHS compliant

    Applications
    Decorative and Entertainment Lighting
    Agriculture Lighting
    General use

    PackagingTape & Reel
    Package2835
    Off State Lens ColorWater Clear
    Test Current60mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.15V
    Width3.5mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux8lm
    Thickness0.7mm
    Max. Forward current70mA
    Max. Flux12lm
    Max. Dominant Wavelength630nm
    Length2.8mm
    Max. Forward Voltage3.1V
    Min. Dominant Wavelength620nm
    Max. Storage Temp.100C
    Max. Pulsed Current140mA
    Max. Operating Temp.85C
