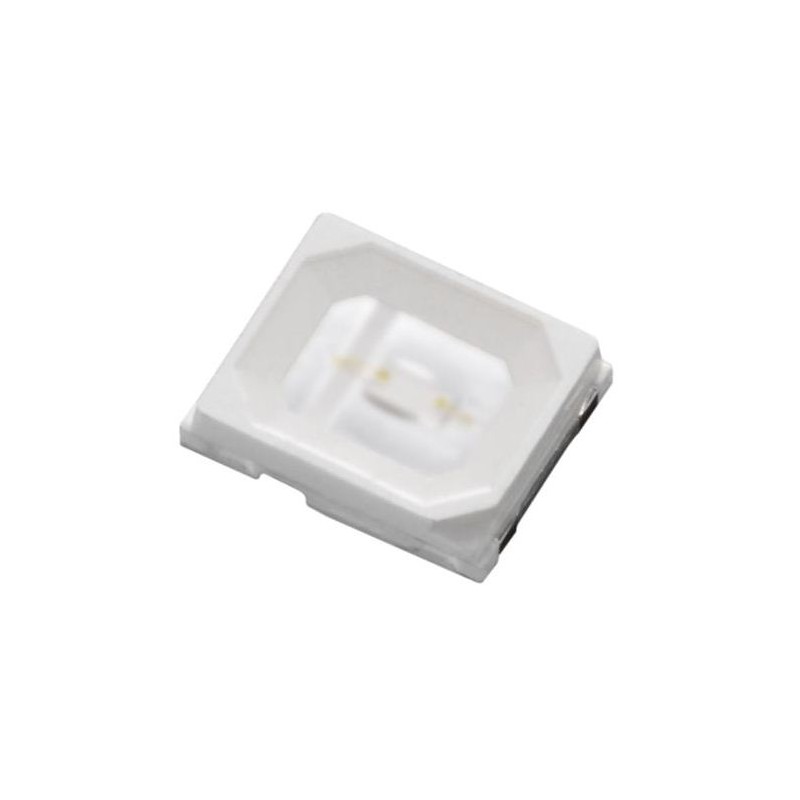

67-21S/NG3C-D2035N3PB2936Z15/2T View larger

Part Number: 67-21S/NG3C-D2035N3PB2936Z15/2T


Dark Green

Green Lighting LED

More details

In Stock

4108 Parts

    Description
    The Everlight 67-21S package has high efficacy, mid. power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.

    Features
    PLCC-2 package
    Top view Green LED
    Wide viewing angle
    Pb-free
    RoHS compliant

    Applications
    Decorative and Entertainment Lighting
    Agriculture Lighting
    General use

    PackagingTape & Reel
    Package2835
    Test Current150mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.9V
    Width3.5mm
    Viewing Angle120 deg.
    TypeHigh Power
    Min. Flux24lm
    Thickness0.7mm
    Max. Forward current150mA
    Max. Flux45lm
    Max. Dominant Wavelength535nm
    Length2.8mm
    Max. Forward Voltage3.6V
    Min. Dominant Wavelength520nm
    Max. Storage Temp.100C
    Max. Pulsed Current300mA
    Max. Operating Temp.85C
