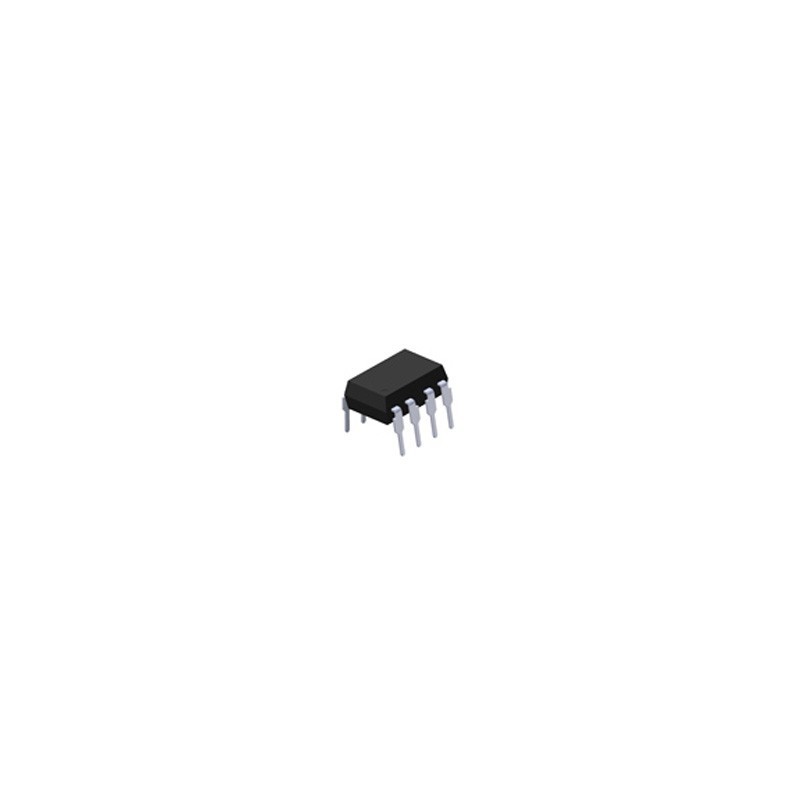

EL4503 View larger

Part Number: EL4503


8-Pin Optocoupler - High Speed

More details

In Stock

300 Parts

    Description:
    The 6N135, 6N136, EL4502 and EL4503 devices each consist of an infrared emitting diode, optically
    coupled to a high speed photo detector transistor. A separate connection for the photodiode bias
    and output-transistor collector increase the speed by several orders of magnitude over conventional
    phototransistor couplers by reducing the base-collector capacitance of the input transistor. The
    devices are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option

    Features:
    High speed 1Mbit/s
    High isolation voltage between input and output (Viso=5000 Vrms )
    Guaranteed performance from 0°C to 70°C
    Wide operating temperature range of -55°C to 100°C
    Pb free and RoHS compliant
    UL and cUL approved(No. E214129)
    VDE approved (No. 132249)
    SEMKO approved
    NEMKO approved
    DEMKO approved
    FIMKO approved

    Applications:
    Line receivers
    Telecommunication equipments
    Power transistor isolation in motor drives
    Replacement for low speed phototransistor photo couplers
    Feedback loop in switch-mode power supplies
    Home appliances
    High speed logic ground isolation

    Package8-Pin DIP
    MountingThrough Hole
    Type1Mbps
    Number of Pins8Pins
    Length9.7mm
    Width6.6mm
    Height3.5mm
    Number of ChannelsSingle
    Max. Forward current25mA
    Max. Forward Voltage1.8V
    Min. CTR19%
    Min. CMTI15kV/uS
    Max. Propagation Delay Tplh0.8uS
    Max. CTR50%
    Common Mode Transient Immunity at High (CMH)15kV/uS
    Min. Isolation Voltage5000V
    Max. Saturation Voltage Vce0.4V
    Max. Power Dissipation100mW
    Min. Operating Temp.-55C
    Max. Operating Temp.125C
    PackagingTube
    Min. Storage Temp.-55C
    Max. Storage Temp.125C
