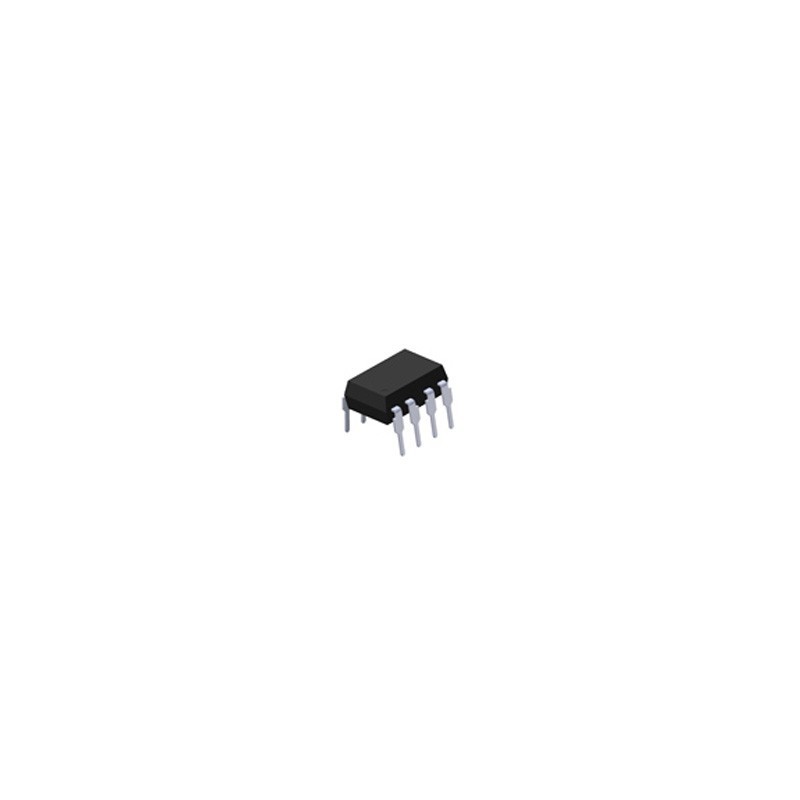

Part Number: EL2631


8-Pin Optocoupler - High Speed

More details

In Stock

125 Parts

    Description:
    The 6N137, EL2601 and EL2611 are consists of an infrared emitting diode optically coupled to a high speed integrated
    photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead
    spacing and SMD options.

    Features:
    High speed 10Mbit/s
    10kV/μs min. common mode transient immunity (EL2611)
    Guaranteed performance from -40 to 85℃
    Logic gate output
    High isolation voltage between input and output (Viso=5000 V rms )
    Pb free and RoHS compliant.
    UL approved (No. 214129)
    VDE approved (No. 132249)
    SEMKO approved
    NEMKO approved
    DEMKO approved
    FIMKO approved
    CSA approved (No. 2037145)

    Applications:
    Ground loop elimination
    LSTTL to TTL, LSTTL or 5 volt CMOS
    Line receiver, data transmission
    Data multiplexing
    Switching power supplies
    Pulse transformer replacement
    Computer peripheral interface
    High speed logic ground isolation

    Package8-Pin DIP
    MountingThrough Hole
    Type10Mbps
    Number of Pins8Pins
    Length9.7mm
    Width6.6mm
    Height3.5mm
    Number of ChannelsDual
    Max. Forward current20mA
    Max. Forward Voltage1.8V
    Typ. Rise Time0.04uS
    Min. CMTI10kV/uS
    Typ. Fall Time0.01uS
    Max. Propagation Delay Tplh0.1uS
    Common Mode Transient Immunity at High (CMH)10kV/uS
    Min. Isolation Voltage5000V
    Max. Power Dissipation85mW
    Min. Operating Temp.-40C
    Max. Operating Temp.100C
    PackagingTube
    Min. Storage Temp.-55C
    Max. Storage Temp.125C
