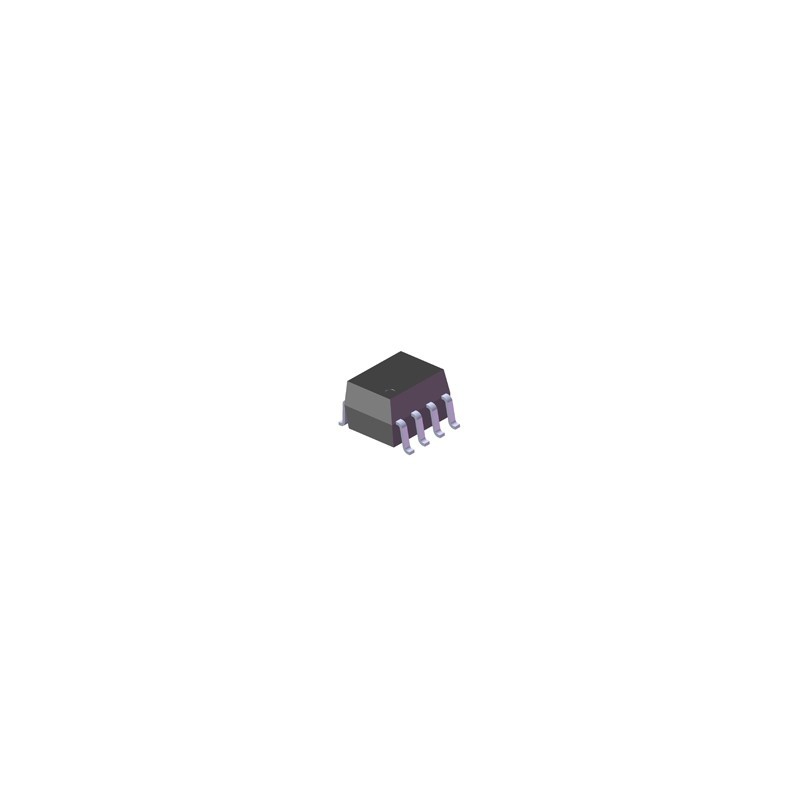

Part Number: EL0631(TA)-V


8-Pin Optocoupler - High Speed

More details

In Stock

98 Parts

    Description:
    The EL0600, EL0601 and EL0611 devices each consists of an infrared emitting diode optically coupled
    to a high speed integrated photo detector logic gate with a strobable output.
    The devices are packaged in an 8-pin small outline package which conforms to the standard SO8
    footprint.

    Features:
    Compliance Halogen Free.(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
    High speed 10Mbit/s
    10kV/µs minimum commone mode transient immunity at VCM= 1KV (HCPL0611)
    Guaranteed performance from -40 to 85
    Wide operating temperature range of -40°C to 100°C
    Logic gate output
    High isolation voltage between input and output   (Viso=3750 V rms )
    Compliance with EU REACH
    Pb free and RoHS compliant.
    UL and cUL approved(No. E214129)
    VDE approved (No. 40028116)
    SEMKO approved
    NEMKO approved
    DEMKO approved
    FIMKO approved

    Applications:
    Ground loop elimination
    LSTTL to TTL, LSTTL or 5 volt CMOS
    Line receiver, data transmission
    Data multiplexing
    Switching power supplies
    Pulse transformer replacement
    Computer peripheral interface
    High speed logic ground isolation

    Package8-Pin SOP
    MountingSMD
    Type10Mbps Logic Gate
    Number of Pins8Pins
    Length3.92mm
    Width4.88mm
    Height3.18mm
    Number of ChannelsDual
    Max. Forward current20mA
    Max. Forward Voltage1.8V
    Typ. Rise Time40uS
    Min. Propagation Delay Tplh100uS
    Min. CMTI1kV/uS
    Typ. Fall Time0.01uS
    Max. Propagation Delay Tplh100uS
    Common Mode Transient Immunity at High (CMH)10kV/uS
    Min. Isolation Voltage3750V
    Max. Saturation Voltage Vce0.6V
    Max. Power Dissipation80mW
    Min. Operating Temp.-40C
    Max. Operating Temp.100C
    PackagingTape & Reel
    Min. Storage Temp.-55C
    Max. Storage Temp.125C
