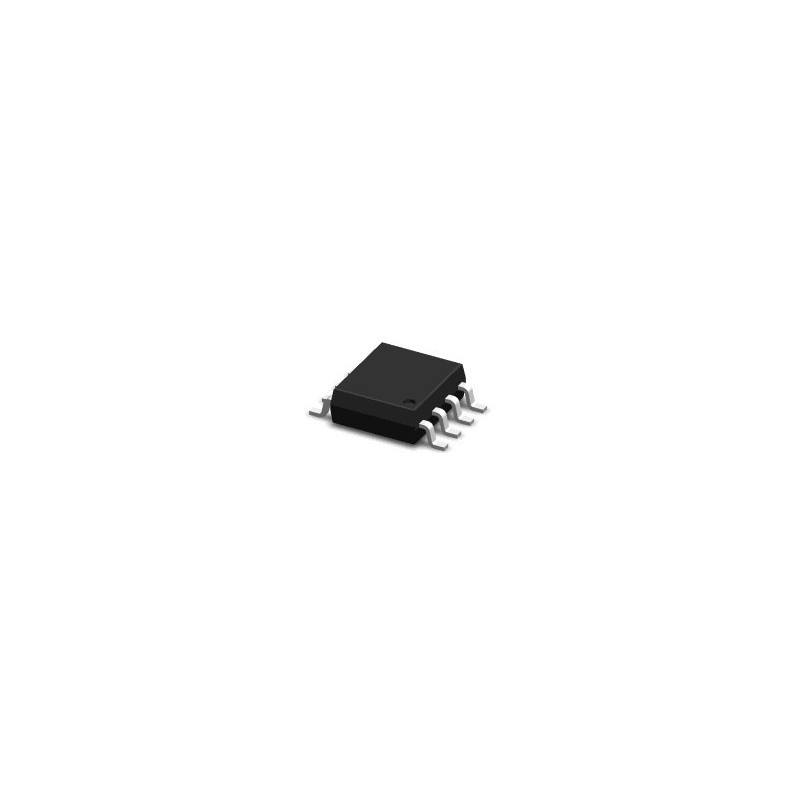

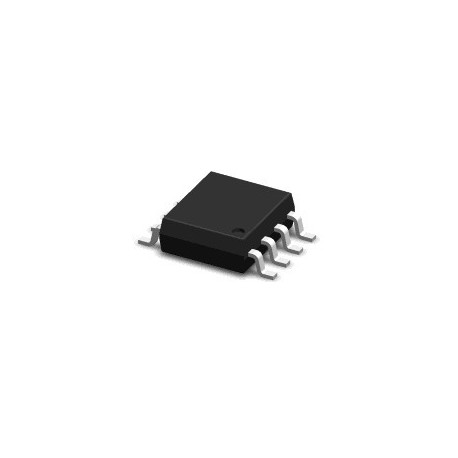

ELW137S(TA)-V View larger

Part Number: ELW137S(TA)-V


8-Pin Optocoupler - High Speed

More details

In Stock

700 Parts

    Description:
    The ELW137, ELW2601 and ELW2611 consists of an infrared emitting diode optically coupled to a high speed
    integrated photo detector logic gate with a strobable output.
    It is packaged in a 8-pin wide body package and available SMD options.

    Features:
    High speed 10Mbit/s
    Guaranteed performance from -40 to 85℃
    Logic gate output
    High isolation voltage between input and output (Viso=5000 V rms )
    Pb free and RoHS compliant.
    UL approved (No. 214129)
    VDE approved (No. 40028391)
    SEMKO approved
    NEMKO approved
    DEMKO approved
    FIMKO approved

    Applications:
    Ground loop elimination
    LSTTL to TTL, LSTTL or 5 volt CMOS
    Line receiver, data transmission
    Data multiplexing
    Switching power supplies
    Pulse transformer replacement
    Computer peripheral interface
    High speed logic ground isolation

    Number of ChannelsSingle
    PackagingTape & Reel
    Package8-Pin DIP Wide Body
    Number of Pins8Pins
    MountingSMD
    Min. Storage Temp.-55C
    Min. Operating Temp.-40C
    Min. Isolation Voltage5000V
    Width9mm
    Type10Mbps
    Typ. Rise Time0.04uS
    Typ. Fall Time0.01uS
    Height3.9mm
    Max. Forward current50mA
    Length11.5mm
    Max. Forward Voltage1.8V
    Max. Storage Temp.125C
    Max. Propagation Delay Tplh0.1uS
    Max. Power Dissipation100mW
    Max. Operating Temp.85C
