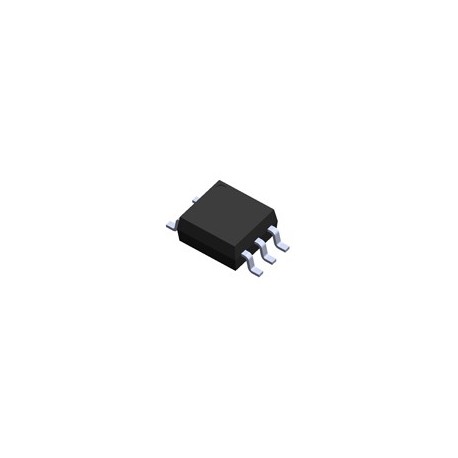

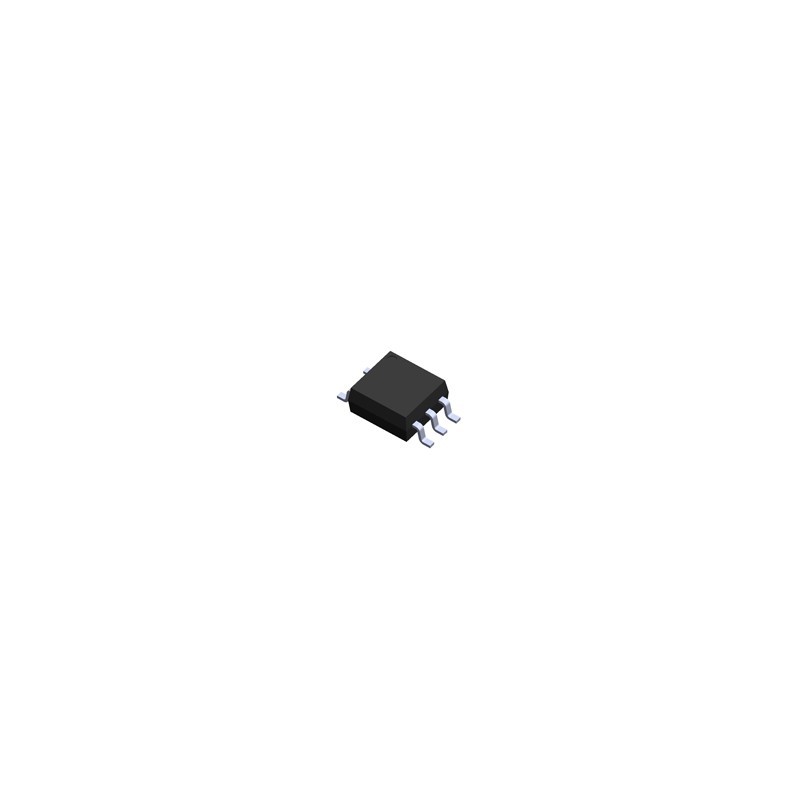

Part Number: ELM600(TA)-V


5-Pin Optocoupler - High Speed

More details

In Stock

90 Parts

    Description
    The ELM600, ELM601 and ELM611 are consists of an infrared
    emitting diode optically coupled to a high speed integrated photo
    detector logic gate with a strobable output.
    The devices are packaged in a 5-pin small outline package
    which conforms to the standard footprint.

    Features
    High speed 10Mbit/s
    Guaranteed performance from -40 to 85
    Logic gate output
    High isolation voltage between input and output (Viso=3750 V rms )
    Pb free and RoHS compliant.
    UL approved (No. 214129)
    VDE approved (No. 40028116)
    SEMKO approved
    NEMKO approved
    DEMKO approved
    FIMKO approved

    Applications
    Ground loop elimination
    LSTTL to TTL, LSTTL or 5 volt CMOS
    Line receiver, data transmission
    Data multiplexing
    Switching power supplies
    Pulse transformer replacement
    Computer peripheral interface

    Number of ChannelsSingle
    PackagingTape & Reel
    Package5-Pin SOP
    Number of Pins5Pins
    MountingSMD
    Min. Storage Temp.-55C
    Min. Operating Temp.-40C
    Min. Isolation Voltage3750V
    Width4.1mm
    Type10Mbps
    Typ. Rise Time0.04uS
    Typ. Fall Time0.01uS
    Height2mm
    Max. Forward current50mA
    Length4.4mm
    Max. Forward Voltage1.8V
    Max. Storage Temp.125C
    Max. Saturation Voltage Vce0.6V
    Max. Propagation Delay Tplh0.1uS
    Max. Power Dissipation85mW
    Max. Operating Temp.85C
