Part Number: 19-22/R6BHC-B01/2T
OrangeRoyal Blue

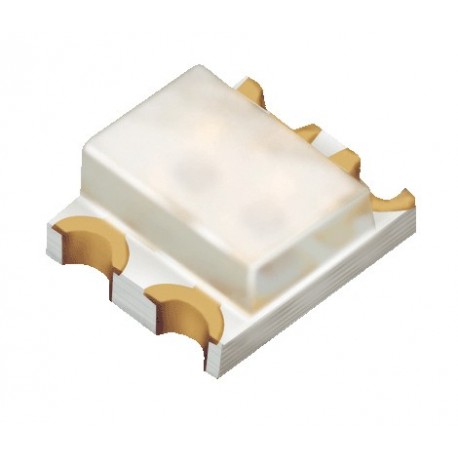

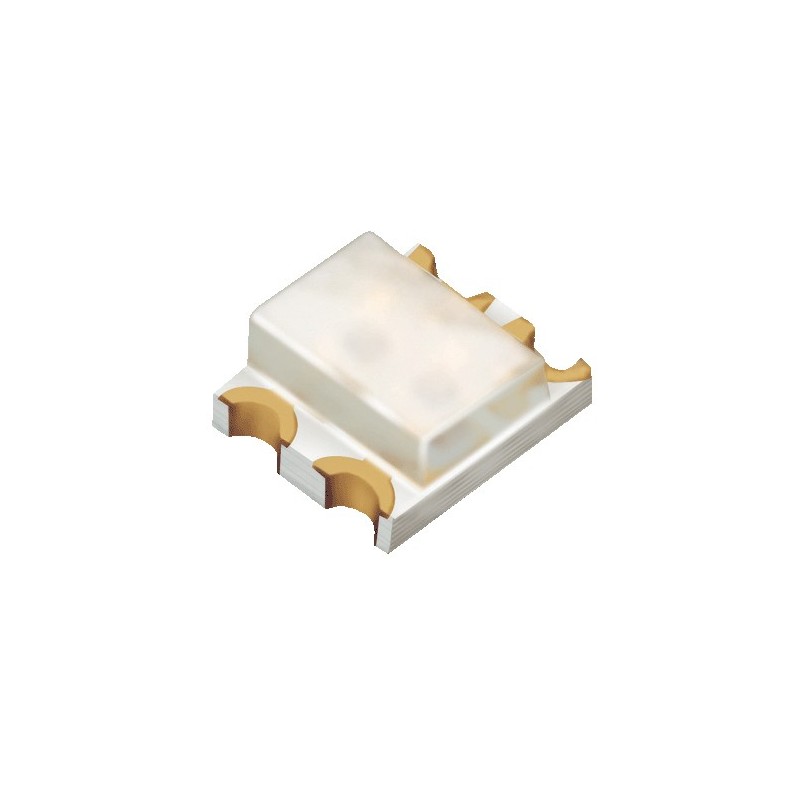

Bi-Color PCB Top View SMD LED Red-Blue
Description:
The SMD LED is much smaller tha n lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and smaller equipment to be obtained. Lightweight makes them ideal for miniature applications.
Features:
Package in 8mm tape on 7" diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase refl ow solder process.
Multi color type.
Pb free.
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
Compliance Halogen Free (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications:
Backlighting in dashboard and switch.
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.
| Peak Wavelength | 632/468nm |
| Packaging | Tape & Reel |
| Package | 1916 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 5mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 1.7/2.65V |
| Width | 1.6mm |
| Viewing Angle | 130 deg. |
| Type | Low-Mid Power |
| Min. Flux | 14.5/14.5mcd |
| Typ. Flux | 20/20mcd |
| Thickness | 0.8mm |
| Max. Forward current | 50/40mA |
| Max. Dominant Wavelength | 629.5/472.5nm |
| Length | 1.9mm |
| Max. Forward Voltage | 2.25/3.25V |
| Colors | Red-Blue |
| Min. Dominant Wavelength | 617.5/467.5nm |
| Max. Storage Temp. | 90C |
| Max. Pulsed Current | 60/100mA |
| Max. Operating Temp. | 85C |
