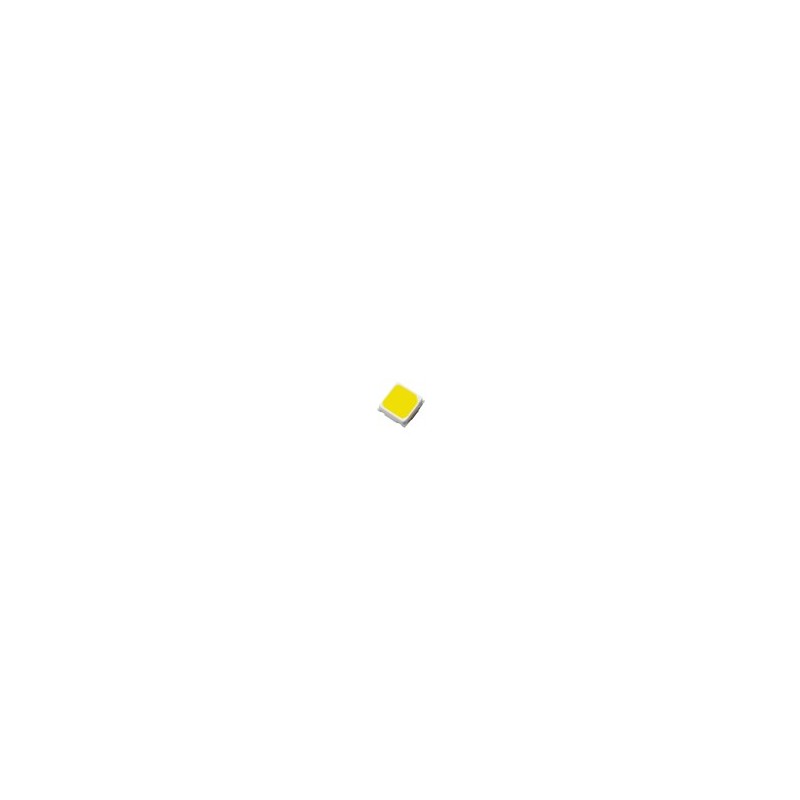

Part Number: XI3030-C01501M-53B56DF4F62732-2T-AM
White
EL 3030E
On Backorder
Description:
EL 3030E
Features:
• Package：SMD EMC package
• Color Temperature range：5180 K ~ 6680 K
• Typical Luminous Flux：50 lm @ 150mA
• Viewing angle：120o
• ESD : up to 8KV
• MSL : 2
• Qualifications : According to AEC-Q102 (Exterior)
• Compliance with RoHS and REACH
• Sulfur robustness: B0
• Compliance Halogen Free. (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications:
• Automotive exterior lighting
• Day Time Running Light(DRL)
| Ray Files | 3D Files |
| Packaging | Tape & Reel |
| Package | 3030 |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 2.75V |
| Typ. Forward Voltage | 3.0V |
| Width | 3mm |
| Viewing Angle | 120 deg. |
| Type | Low-Mid Power |
| Min. Flux | 45lm |
| Typ. Flux | 50lm |
| Thickness | 0.38mm |
| Max. Forward current | 350mA |
| Max. Flux | 70lm |
| Length | 3mm |
| Max. Forward Voltage | 3.25V |
| Colors | White |
| Max. Storage Temp. | 125C |
| Max. Operating Temp. | 125C |
