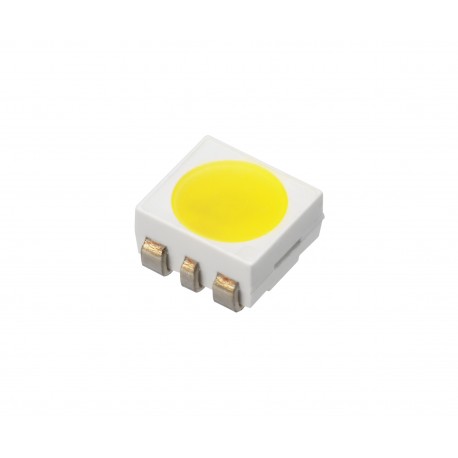

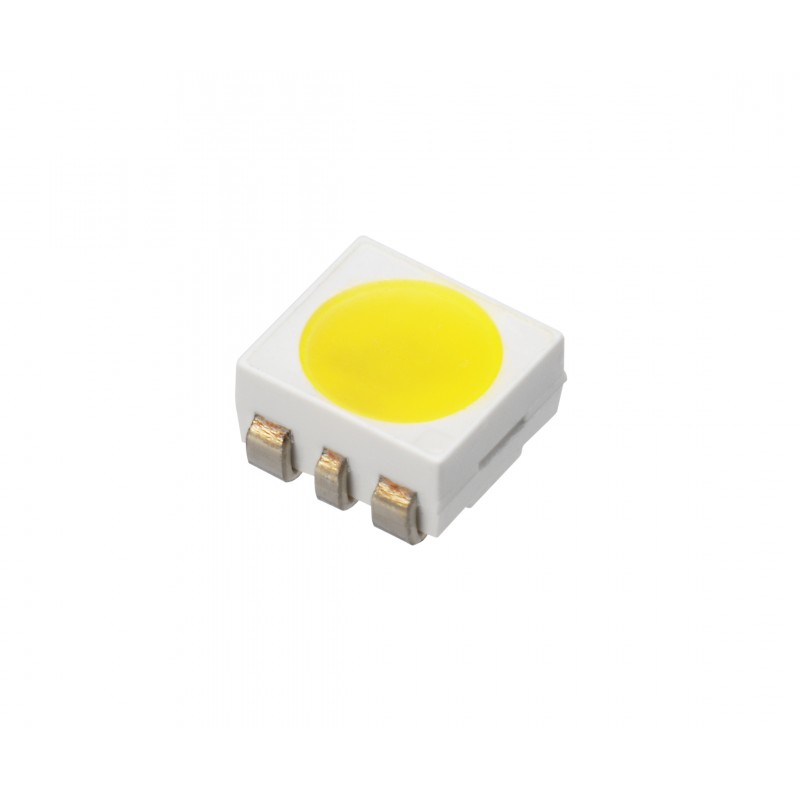

New A09K-C71501H-50A56DEAFA2735-1T-AM View larger

Part Number: A09K-C71501H-50A56DEAFA2735-1T-AM


White

PLCC Top View SMD LED

More details

On Backorder

    Features:

    • Package：PLCC 6 package
    • Color：Cool White
    • Typ. Luminance Intensity：10000 mcd @ 150mA
    • Typ. color cordinates : (0.3, 0.3)
    • Viewing angle：120o
    • ESD: 8KV
    • MSL: 2
    • Sulphuer robustness
    • Qualified AEC-Q102
    • Compliance Halogen Free (Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm).
    • Compliance with RoHS and REACH


    Applications:

    • Automotive Exterior Lighting
    • Automotove Interior Lighting

    Ray Files 3D Files
    PackagingTape & Reel
    Package3431
    Test Current150mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage2.75V
    Typ. Forward Voltage3.1V
    Width3.1mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux7100mcd
    Typ. Flux10000mcd
    Height1.8mm
    Max. Forward current200mA
    Max. Flux14000mcd
    Length3.4mm
    Max. Forward Voltage3.75V
    ColorsWhite
    Max. Storage Temp.110C
    Max. Power Dissipation560mW
    Max. Operating Temp.110C
