Part Number: A09K-UY1501H-8294DBEA1727-F88-AM


White

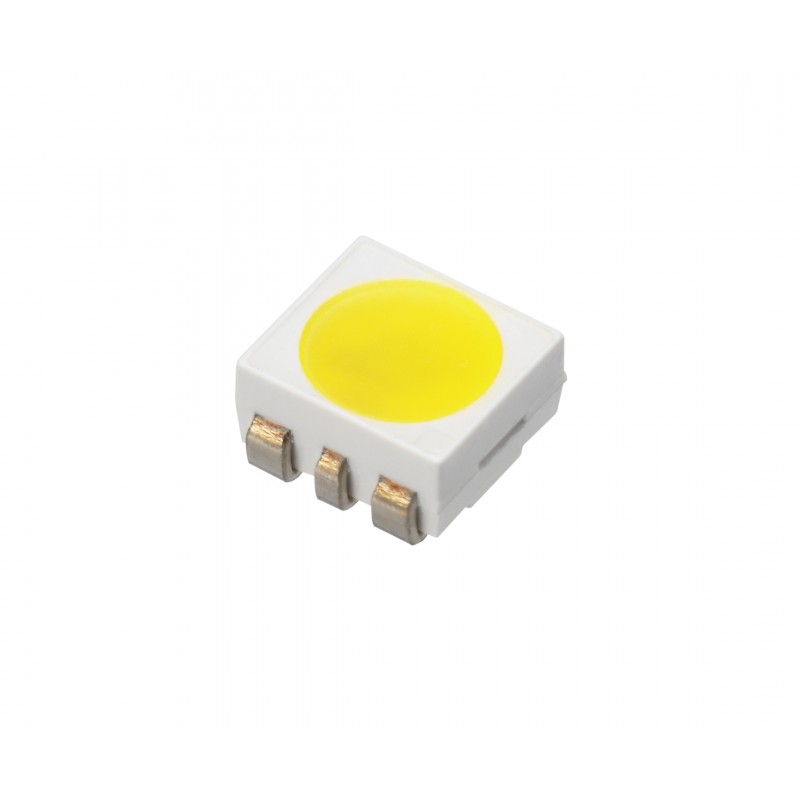

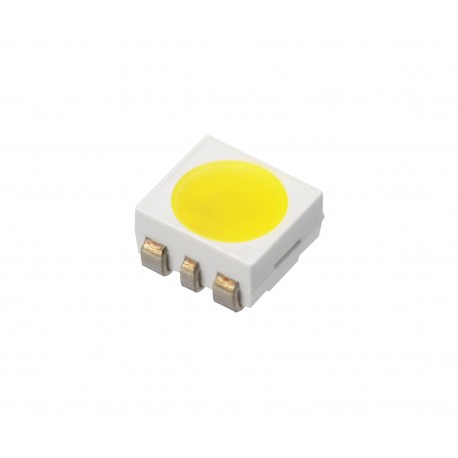

PLCC Top View SMD LED Cool White

More details

On Backorder

    Features:

    • Package PLCC 6 package
    • Color Red
    • Typ. Luminance Intensity 6000 mcd @ 150mA
    • Viewing angle 120o
    • ESD : 8KV
    • MSL : 2
    • Qualified AEC-Q102
    • Sulfur robustness
    • The product itself will remain within RoHS compliant version
    • Compliance with EU REACH
    • Compliance Halogen Free (Br <900 ppm, Br+Cl < 1500 ppm)

    Applications:

    • Automotive Exterior Lighting
    • Turning signal

    Ray Files 3D Files
    PackagingTape & Reel
    Package3431
    Test Current150mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.75V
    Typ. Forward Voltage2.15
    Width3.1mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux5600mcd
    Typ. Flux6000mcd
    Height1.8mm
    Max. Forward current200mA
    Max. Flux9000mcd
    Length3.4mm
    Max. Forward Voltage2.75V
    ColorsCool White
    Max. Storage Temp.110C
    Max. Power Dissipation560mW
    Max. Operating Temp.110C
