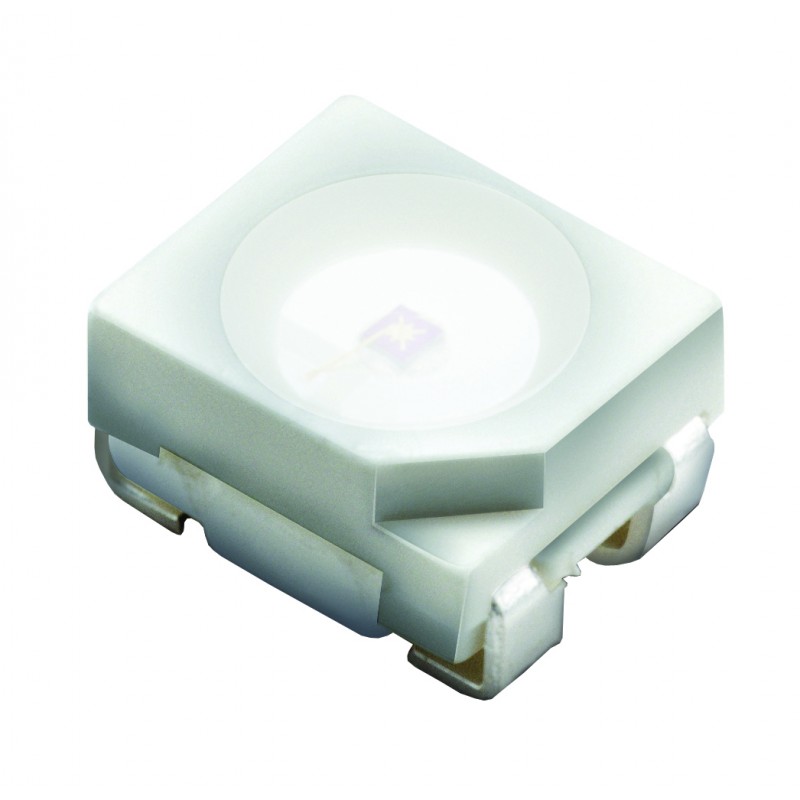

Part Number: 67-31EP3-UR0500H-1224DBFB1727-2T-AM
Amber
PLCC Top View SMD LED Red
Description:
This series benefit from a package design with wide viewing angle which is optimized for light coupling by inter reflector. This feature makes this series ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Features:
Package：PLCC 3 package
Emitted Color：Red
Typ. Luminance Intensity：13000 mcd @ 50mA
Typ. Luminous Flux：40 lm @ 50mA
Viewing angle：30o
ESD; up to 2KV
MSL: 3
Qualified AEC-Q101
Compliance with RoHS and REACH
Compliance Halogen Free .(Br <900 ppm ,CI <900 ppm , Br+Cl < 1500 ppm)
Applications:
Automotive Interior Lighting , Dashboard, Switch, Reading lamp, Audio and Car Infortainment….etc
CHMSL
Tail lamp
| Packaging | Tape & Reel |
| Package | 3528 |
| Test Current | 50mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Operating Temp. | -40C |
| Min. Forward Voltage | 1.75V |
| Typ. Forward Voltage | 2.0V |
| Width | 2.8mm |
| Viewing Angle | 30 deg. |
| Type | Low-Mid Power |
| Min. Flux | 5600mcd |
| Typ. Flux | 13000mcd |
| Typ. Dominant Wavelength | 616nm |
| Height | 1.8mm |
| Max. Forward current | 70mA |
| Max. Flux | 18000mcd |
| Max. Dominant Wavelength | 624nm |
| Length | 3.5mm |
| Max. Forward Voltage | 2.75V |
| Colors | Red |
| Min. Dominant Wavelength | 612nm |
| Max. Storage Temp. | 110C |
| Max. Power Dissipation | 192mW |
| Max. Operating Temp. | 110C |
